A70QS500-4K Mersen Fuses
Product Details
- Current Rating 500 A
- Terminal Type Blade
- Weight 567.5 g
- UL Certification YES
- Trip Class High Speed
- Country Of Origin MX
- Fuse Class Semiconductor
- Ampere Rating 500 A
- Mounting Bolted
- AC Max I.R./Breaking Capacity: I1 40 kA
- Body/Insulating Material GMG
- Speed/Characteristic High Speed
- Sell Pack Width 2.5 in
- Rated voltage AC UL 700 V
- Sell Pack Length 8.75 in
- Connection/Terminal Material Tin-Plated Copper
- Product Diameter 2 in
- Rated voltage DC UL 700 V
- Sell Pack Quantity 1 Each
- Sell Pack Height 2.38 in
- ROHS Compliant Yes
- Product Length 7.09 in
- Connection/Terminal Type Bolted
- Product Weight 1.25 lb
- Sell Pack Weight 1.31 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A70QS500-4K on Advantage Electric Supply is $1,455.98. Order now.
About the product

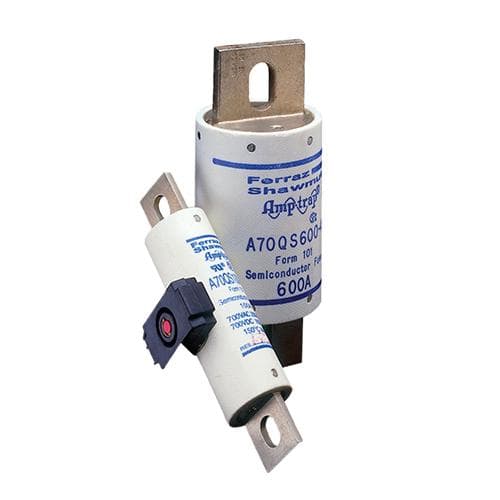

A70QS500-4K Mersen - High Speed Fuse Amp-Trap® A70QS 700VAC 700VDC 500A Bolted Blade 4K
Product type: Semiconductor Protection Fuses
A70QS Amp-Trap® high speed fuses were developed in response to the need for improved overall performance of 700V semiconductor fuses for new equipment requirements. A70QS fuses have lower I2t for better protection, longer life when subjected to cyclic loading, plus lower watts loss. A70QS is the best choice to protect dynamic solid state equipment such as motor drives, UPS, etc.
*Very Low I2t for improved protection of equipment
*Superior cycling ability for long, reliable life on high cyclic loading
*Low watts loss for cooler operation
*700V AC/DC rating gives greater design versatility
*Ultra compact sizes allow down-sizing of existing equipment
