STZ480Y20B1 Mersen Electronic Components
Part#:STZ480Y20B1
Alt. Part#:0782001478827
Manufacturer:Mersen
Category:Electronic Components
Product Lifecycle:Active
Product description

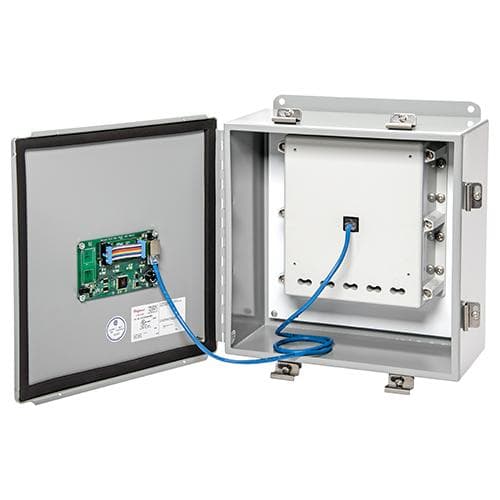

SPD - Type 1 STZ 480V Y 200kA B1
Product Details
- UL SPD Type Type 1
- Nominal Operating Volt Rating (Un) 480Y/277 V
- Connection/Terminal Type Box
- MCOV L-L 640 V
- Product Weight 30.2 lb
- Product Length 13.52 in
- ROHS Compliant Yes
- AC or DC AC
- Enclosure NEMA Type 4
- Installation Mounting Panel or Wall Mount
- VPR L-G 1200 V
- Sell Pack Weight 30.2 lb
- Frequency 50/60 Hz
- Indication System Yes
- MCOV N-G 150 V
- VPR N-G 700 V
- Sell Pack Quantity 1 Each
- Max Discharge Current : Imax (8/20) 200 kA per phase
- Indication System Type LED and Remote Audible Alarm
- MCOV L-G 320 V
- VPR L-N 1500 V
- Sell Pack Width 16.63 in
- Protection Modes L-G, L-L, L-N, N-G
- System Configuration 3-Phase Wye
- MCOV L-N 320 V
- Product Width 12.98 in
- Sell Pack Length 21.88 in
- Nominal Discharge Current (In) (8/20) 20kA
- Short Circuit Current Rating (SCCR) 200 kA
- Housing Material Steel
- VPR L-L 2000 V
- Product Height 6.29 in
- Sell Pack Height 11.25 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of STZ480Y20B1 on Advantage Electric Supply is $14,547.17. Order now.
