1SVR560730R3402 ABB Control Industrial Automation Components

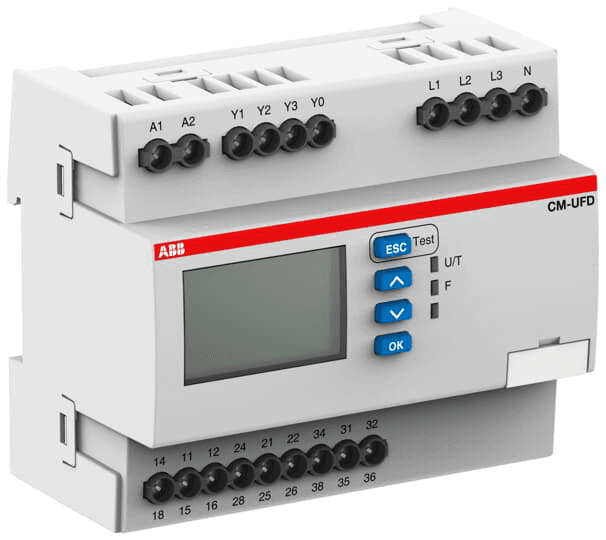

ABB 1SVR560730R3402 is a multifunctional grid feeding monitoring relay designed for various monitoring functions including 10 minutes average value, interrupted neutral, under-/over-frequency, under-/over-voltage (G59/3, G83/2), ROCOF (Rate of Change of Frequency), and vector shift detection. It features a 3PDT (3 Pole Double Throw) - 3C/O rated power and offers an IP20 degree of protection. The relay has dimensions of 90 mm in height, 108 mm in width, and 67 mm in depth, with a DIN rail mounting mode. It operates with a power consumption of 1.5 W at 24Vdc and is constructed with a PA666FR housing material. Connection capacity includes various configurations for both flexible and rigid wires, accommodating a range from 0.25-4mm2 to 24-10AWG. The relay supports a network frequency of 50/60 Hz and a supply voltage range of 24-240 V AC/DC. It is designed for electrical durability of 50,000 operations at rated voltage and mechanical durability of 30,000,000 operations at no load. The rated impulse voltage is 4 kV, with a rated insulation voltage of 600 V. Contacts are coated with a Silver-Nickel alloy (Ag/Ni) and are cadmium-free. Current consumption is 0.064 A at 24Vdc and 0.0064 A at 230Vac. The device features a green LED for control/supply voltage indication and a red LED for fault messages, with screw-clamp type terminals. It operates within a temperature range of -20°C to +60°C, adheres to earthing system C, and offers various protection and measurement functions within a voltage range of 0-540Vac.
