1SVR730700R2100 ABB Control Industrial Automation Components

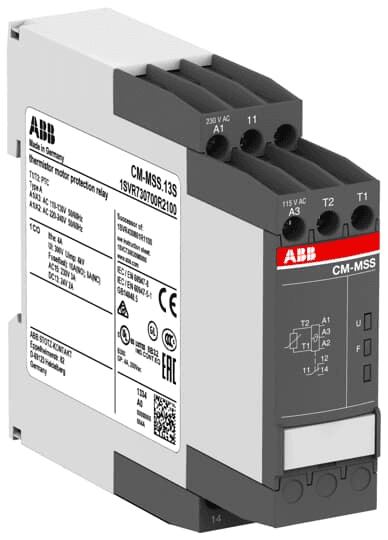

ABB 1SVR730700R2100 is a temperature controller with an analog interface, designed for thermistor motor protection relay applications. It features an auto-reset function and SPDT (Single Pole Double Throw) contacts, with a housing protection rating of IP50 and terminal protection rating of IP20. The control voltage is suitable for DIN rail mounting, and it supports a variety of wire connections including flexible and rigid wires with specifications ranging from 0.5-4mm2 and 20-12AWG. The device operates on a supply voltage with AC options of 110-130V and 220-240V, and it is designed for a control circuit rated current of 4A at 230Vac for AC-12 and 3A at 230Vac for AC-15, with a DC rating of 4A at 24Vdc for DC-12 and 2A at 24Vdc for DC-13. The temperature controller has a short circuit current breaking capacity (Icn) and offers protection settings within a temperature range of -25°C to +60°C. It features a green LED for control/supply voltage presence, a red LED for fault indication, and a yellow LED when the output relay is energized. The trip unit type is a screw-clamp, and the terminals are designed for easy installation. The device is capable of 100,000 operations, with analog outputs rated for 30,000,000 operations, and it uses a silver-nickel alloy (Ag/Ni) that is cadmium-free.
