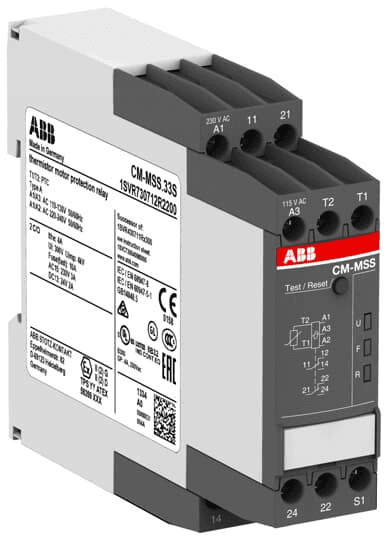

1SVR730712R2200 ABB Control Industrial Automation Components

ABB 1SVR730712R2200 is an analog temperature controller designed for thermistor motor protection with a variety of functions including a thermistor motor protection relay, options for auto, manual, or remote reset, dynamic interrupted wire detection, short-circuit detection, and a test button. It features DPDT (Double Pole Double Throw) - 2C/O contacts, with housing rated at IP50 and terminals at IP20. The control voltage operates on a DIN rail, with a communication protocol width of 85.6 mm, a net height of 4 kV, rated impulse voltage (Uimp) of 22.5 mm, and a rated insulation voltage (Ui) of 300 V. The device's dimensions include a net width of 103.7 mm. It supports a control circuit rated current of 4 A at 230Vac for AC-12, 3 A at 230Vac for AC-15, 4 A at 24Vdc for DC-12, and 2 A at 24Vdc for DC-13. The supply voltage is compatible with AC 110-130 V and AC 220-240 V, featuring a 50/60 Hz wavelength. It is designed for a minimum temperature of -25°C and a maximum of +60°C. The device offers a short circuit current breaking capacity (Icn) and protection settings suitable for its application, with a processing time and measurement function tailored for temperature control. The terminals are screw-clamp type, accommodating various wire sizes and types, including flexible and rigid wires with specifications for both AWG and mm2. The product includes a green LED for control/supply voltage presence, a red LED for fault messages, and a yellow LED for output relay energization indication. It is designed for over 100,000 operations, with analog outputs capable of 30,000,000 operations, and features contacts made from a Silver-Nickel alloy (Ag/Ni), ensuring it is cadmium-free (Cd-free).
