1243/3C SL001 Alpha Wire Electronic Components

Name: 1243/3C SL001
Brand: Alpha Wire

1243/3C SL001 on Advantage Electric Supply

Part#:1243/3C SL001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

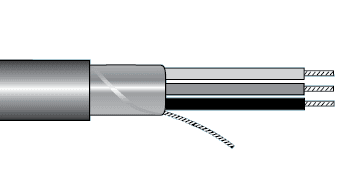

Alpha Essentials Multi-Conductor Cable - Foil Shield - 20 AWG 3 Conductor - Gray - 300V - 1000ft - Alpha 1243/3C SL001

Product Details

AWG/GAUGE
20
SERIES
Alpha Essentials Multi-Conductor
CONDUCTOR STRANDING
Stranded
NOMINAL OD (IN)
0.21
JACKET COLOR
Gray
VOLTAGE
300V
SHIELDING
Foil
STANDARDS/APPROVALS
UL Approved CSA Approved CE Approved
NUMBER OF CONDUCTORS
3
JACKET MATERIAL
PVC
MANUFACTURER PART NUMBER
1243/3C SL001
CONDUCTOR MATERIAL
Tinned copper
TEMPERATURE
-4°F to +167deg;F-20°C to +75°C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1243/3C SL001 Related Documents

Datasheet.pdf

Manufacturer warranty
