1563 GR001 Alpha Wire Electronic Components

1563 GR001 on Advantage Electric Supply

Alpha Wire

Part#:1563 GR001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

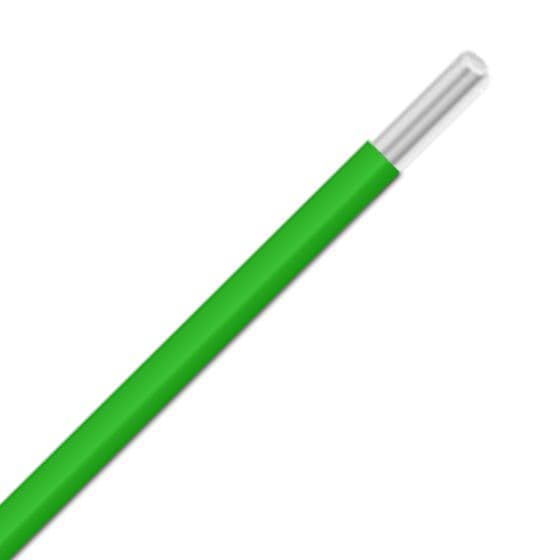

1563 GR001 - Alpha Wire MIL-W-76B/Type MW PVC Hook-Up/Lead Wire - 20 AWG - Solid Conductor - Tinned Copper - 1000V - Green - 1000ft

Product Details

NOMINAL OD (IN)
0.064
MANUFACTURER PART NUMBER
1563 GR001
CONDUCTOR STRANDING
Solid
MIL-SPEC
MIL-W-76B Type MW
INSULATION MATERIAL
PVC
CONDUCTOR MATERIAL
Tinned copper
INSULATION THICKNESS (IN)
0.016
VOLTAGE
1000V
ADDITIONAL STANDARDS
CA Prop 65
JACKET COLOR
Green
TEMPERATURE
-40°F to +176°F-40°C to +80°C
AWG/GAUGE
20

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
