1854/19 WV001 Alpha Wire Electronic Components

Name: 1854/19 WV001
Brand: Alpha Wire

1854/19 WV001 on Advantage Electric Supply

Part#:1854/19 WV001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

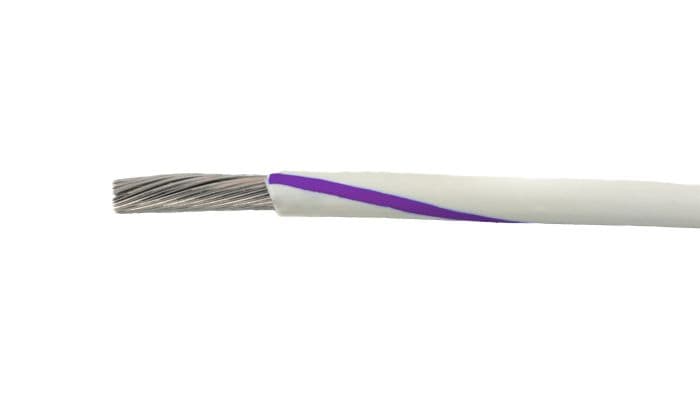

1854/19 WV001 - Alpha Wire MIL-W-16878E/1 PVC Hook-Up/Lead Wire - 24 AWG - 19/36 Stranded Conductor - Tinned Copper - 600V - White/Violet - 1000ft

Product Details

CONDUCTOR MATERIAL
Tinned copper
NOMINAL OD (IN)
0.045
TEMPERATURE
-67°F to +221°F-55°C to +105°C
INSULATION THICKNESS (IN)
0.01
VOLTAGE
600V
CONDUCTOR STRANDING
Stranded
INSULATION MATERIAL
PVC
JACKET COLOR
White/Violet
MIL-SPEC
MIL-W-16878/1
MANUFACTURER PART NUMBER
1854/19 WV001
AWG/GAUGE
24
ADDITIONAL STANDARDS
CA Prop 65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1854/19 WV001 Related Documents

Datasheet.pdf

Manufacturer warranty

1854/19 WV001 Alpha Wire
