2924 WH005 Alpha Wire Electronic Components

Name: 2924 WH005
Brand: Alpha Wire

Part#:2924 WH005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

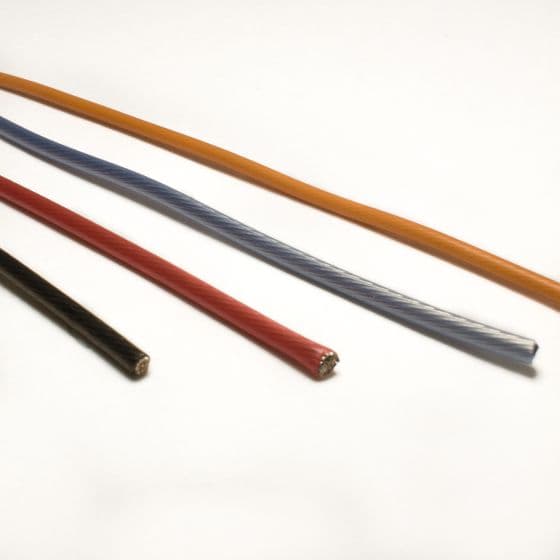

OBSOLETE - Alpha Wire ThermoThin Hook-Up/Lead Wire - 24 AWG 19 Stranded Conductor - Nickel plated copper - White - 100 ft

Product Details

CONDUCTOR MATERIAL
Nickel platted copper
TEMPERATURE
-150°C to +300°C
MANUFACTURER PART NUMBER
2924 WH005
STRAND COUNT
19
JACKET COLOR
White
NOMINAL OD (IN)
0.035
VOLTAGE
600V
AWG/GAUGE
24
INSULATION MATERIAL
ECA fluoropolymer
SERIES
ThermoThin
NOMINAL OD (MM)
0.889
STANDARDS/APPROVALS
UL AWM
CONDUCTOR STRANDING
Stranded

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
