3055/1 YL005 Alpha Wire Electronic Components

3055/1 YL005 on Advantage Electric Supply
Alpha Wire

Part#:3055/1 YL005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

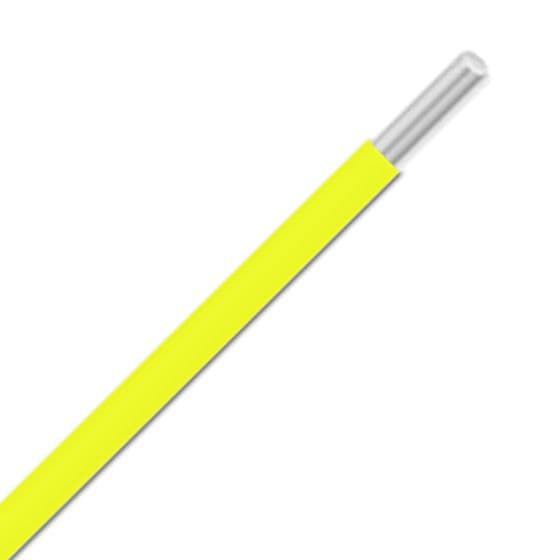

3055/1 YL005 - Alpha Wire UL 1007/UL 1569 PVC Hook-Up/Lead Wire - 18 AWG - Solid Conductor - Tinned Copper - 300V - Yellow - 100ft

Product Details

  • VOLTAGE
    300V
  • MANUFACTURER PART NUMBER
    3055/1 YL005
  • CSA TYPE
    CSA FT 1CSA TR 64
  • ADDITIONAL STANDARDS
    CA Prop 65UL AWM|UL VW-1
  • STANDARDS/APPROVALS
    UL Approved CSA Approved
  • TEMPERATURE
    -40°F to +221°F-40°C to +105°C
  • INSULATION MATERIAL
    PVC
  • INSULATION THICKNESS (IN)
    0.016
  • JACKET COLOR
    Yellow
  • UL STYLE / STANDARD
    UL 1007 UL 1569
  • NOMINAL OD (IN)
    0.072
  • CONDUCTOR MATERIAL
    Tinned copper
  • CONDUCTOR STRANDING
    Solid
  • AWG/GAUGE
    18

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3055/1 YL005 Related Documents

Datasheet.pdf

Manufacturer warranty

3055/1 YL005 Alpha Wire
