422601 RD013 Alpha Wire Electronic Components

422601 RD013 on Advantage Electric Supply
Alpha Wire

Part#:422601 RD013

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

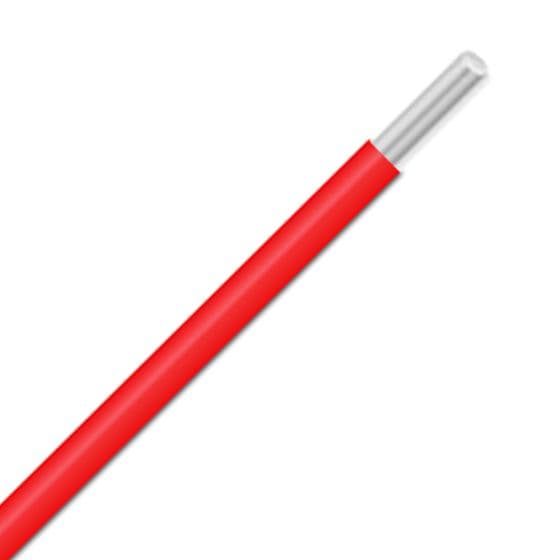

422601 RD013 - Alpha Wire UL 1061 PVC Hook-Up/Lead Wire - 26 AWG - Solid Conductor - Tinned Copper - 300V - Red - 5000ft

Product Details

  • MANUFACTURER PART NUMBER
    422601 RD013
  • STANDARDS/APPROVALS
    UL Approved CSA Approved
  • CSA TYPE
    CSA AWM I A/BCSA FT 1
  • ADDITIONAL STANDARDS
    UL AWM|UL VW-1
  • VOLTAGE
    300V
  • INSULATION MATERIAL
    PVC
  • NOMINAL OD (IN)
    0.036
  • CONDUCTOR MATERIAL
    Tinned copper
  • INSULATION THICKNESS (IN)
    0.01
  • TEMPERATURE
    14°F to +176°F-10°C to +80°C
  • CONDUCTOR STRANDING
    Solid
  • JACKET COLOR
    Red
  • AWG/GAUGE
    26
  • UL STYLE / STANDARD
    UL 1061

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
