5020/15C SL001 Alpha Wire Industrial Automation Components

Name: 5020/15C SL001
Brand: Alpha Wire

5020/15C SL001 on Advantage Electric Supply

Part#:5020/15C SL001

Manufacturer:Alpha Wire

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

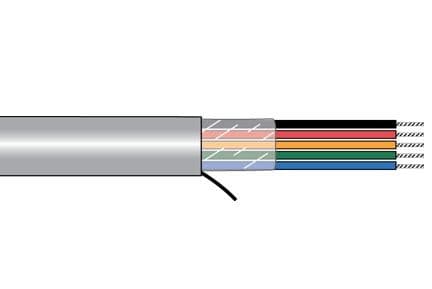

Alpha Xtra-Guard®1 Unshielded Multiconductor Cable - 24 AWG 15 Conductor - Slate - 300V - 1000 ft - Color Code E

Product Details

MANUFACTURER PART NUMBER
5020/15C SL001
SHIELDING
Unshielded
STANDARDS/APPROVALS
VW-1 UL 1685
JACKET MATERIAL
PVC
CONDUCTOR MATERIAL
Tinned copper
JACKET COLOR
Gray
AWG/GAUGE
24
SERIES
Xtra-Guard 1
TEMPERATURE
105°C
CONDUCTOR STRANDING
Stranded
NOMINAL OD (MM)
6.8834
NUMBER OF CONDUCTORS
15
VOLTAGE
300V
NOMINAL OD (IN)
0.271

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

5020/15C SL001 Related Documents

Datasheet.pdf

Manufacturer warranty
