5120/25C SL005 Alpha Wire Electronic Components

Name: 5120/25C SL005
Brand: Alpha Wire

5120/25C SL005 on Advantage Electric Supply

Part#:5120/25C SL005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

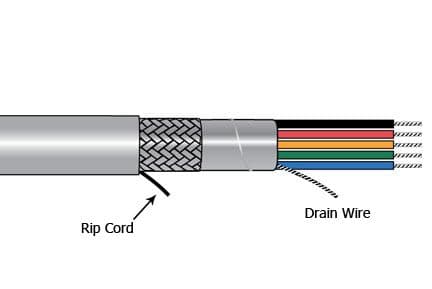

Alpha Xtra-Guard®1 SupraShield Multiconductor Cable - 24 AWG 25 Conductor - Slate - 300V - 100 ft

Product Details

NUMBER OF CONDUCTORS
25
VOLTAGE
300V
JACKET MATERIAL
PVC
TEMPERATURE
105°C
CONDUCTOR STRANDING
Stranded
MANUFACTURER PART NUMBER
5120/25C SL005
JACKET COLOR
Gray
NOMINAL OD (MM)
9.144
SHIELDING
SupraShield
SERIES
Xtra-Guard 1
AWG/GAUGE
24
CONDUCTOR MATERIAL
Tinned copper
NOMINAL OD (IN)
0.36
STANDARDS/APPROVALS
VW-1 UL 1685

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

5120/25C SL005 Related Documents

Datasheet.pdf

Manufacturer warranty

5120/25C SL005 Alpha Wire

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us
