5355C SL005 Alpha Wire Electronic Components

Name: 5355C SL005
Brand: Alpha Wire

5355C SL005 on Advantage Electric Supply

Part#:5355C SL005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

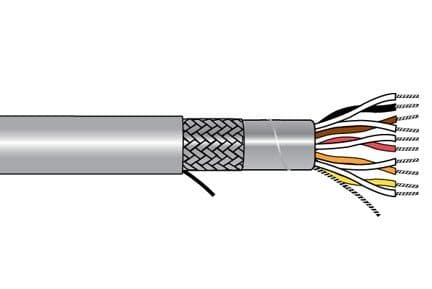

Alpha Xtra-Guard®1 SupraShield Multipair Cable - 20 AWG 27 Pair - Slate - 300V - 100 ft

Product Details

TEMPERATURE
105°C
MANUFACTURER PART NUMBER
5355C SL005
STANDARDS/APPROVALS
VW-1 UL 1685
VOLTAGE
300V
NOMINAL OD (MM)
19.0246
JACKET COLOR
Gray
JACKET MATERIAL
PVC
AWG/GAUGE
20
NUMBER OF CONDUCTORS
27 pair
CONDUCTOR STRANDING
Stranded
NOMINAL OD (IN)
0.749
SERIES
Xtra-Guard 1
SHIELDING
SupraShield
CONDUCTOR MATERIAL
Tinned copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
