541401 WH001 Alpha Wire Electronic Components

Name: 541401 WH001
Brand: Alpha Wire

541401 WH001 on Advantage Electric Supply

Part#:541401 WH001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

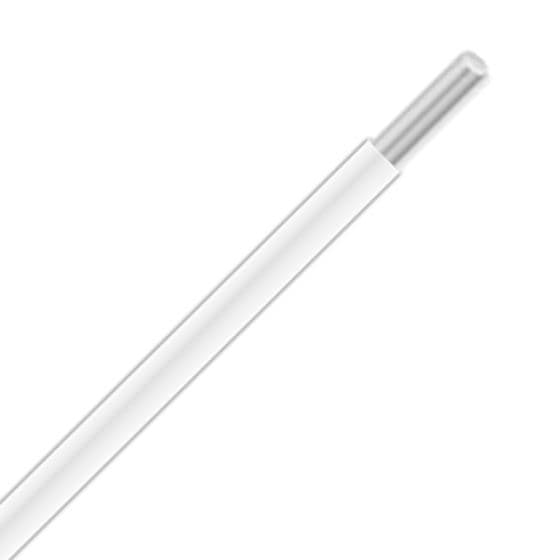

541401 WH001 - Alpha Wire THHN/THWN PVC/NYLON Building Wire - 14 AWG - Solid Conductor - Bare Copper - 600V - White - 1000ft

Product Details

JACKET COLOR
White
STANDARDS/APPROVALS
UL Approved
INSULATION THICKNESS (IN)
0.016
ADDITIONAL STANDARDS
THHN|UL THWN|CA Prop 65
MANUFACTURER PART NUMBER
541401 WH001
CONDUCTOR MATERIAL
Bare copper
INSULATION MATERIAL
PVC/Nylon
TEMPERATURE
-40°F to +194°F-40°C to +90°C
AWG/GAUGE
14
CONDUCTOR STRANDING
Solid
NOMINAL OD (IN)
0.106
VOLTAGE
600V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
