541801 WH002 Alpha Wire Electronic Components

Name: 541801 WH002
Brand: Alpha Wire

541801 WH002 on Advantage Electric Supply

Part#:541801 WH002

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

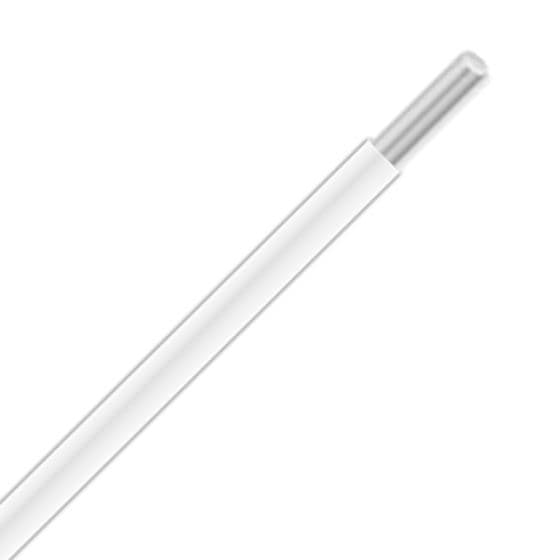

541801 WH002 - Alpha Wire TFN PVC/NYLON Fixture Wire - 18 AWG - Solid Conductor - Bare Copper - 600V - White - 500ft

Product Details

TEMPERATURE
-40°F to +194°F-40°C to +90°C
INSULATION THICKNESS (IN)
0.016
MANUFACTURER PART NUMBER
541801 WH002
AWG/GAUGE
18
JACKET COLOR
White
ADDITIONAL STANDARDS
TFN|CA Prop 65
NOMINAL OD (IN)
0.082
CONDUCTOR MATERIAL
Bare copper
CONDUCTOR STRANDING
Solid
INSULATION MATERIAL
PVC/Nylon
VOLTAGE
600V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
