5534 SL005 Alpha Wire Electronic Components

Name: 5534 SL005
Brand: Alpha Wire

Part#:5534 SL005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

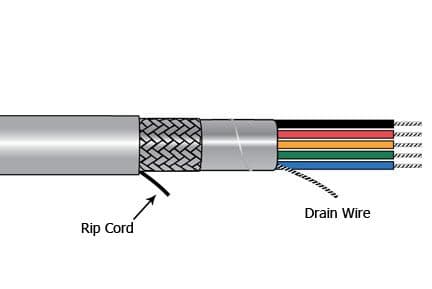

Alpha Xtra-Guard®1 SupraShield Multiconductor Cable - 16 AWG 4 Conductor - Slate - 600V - 100 ft

Product Details

JACKET MATERIAL
PVC
NOMINAL OD (IN)
0.456
NUMBER OF CONDUCTORS
4
TEMPERATURE
105°C
CONDUCTOR MATERIAL
Tinned copper
MANUFACTURER PART NUMBER
5534 SL005
JACKET COLOR
Gray
NOMINAL OD (MM)
11.5824
AWG/GAUGE
16
STANDARDS/APPROVALS
VW-1 UL 1685
SHIELDING
SupraShield
VOLTAGE
600V
SERIES
Xtra-Guard 1
CONDUCTOR STRANDING
Stranded

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
