5535 SL005 Alpha Wire Electronic Components

Name: 5535 SL005
Brand: Alpha Wire

Part#:5535 SL005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

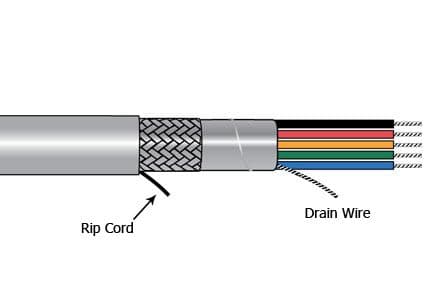

Alpha Xtra-Guard®1 SupraShield Multiconductor Cable - 16 AWG 5 Conductor - Slate - 600V - 100 ft

Product Details

NUMBER OF CONDUCTORS
5
NOMINAL OD (MM)
12.4968
SERIES
Xtra-Guard 1
CONDUCTOR STRANDING
Stranded
NOMINAL OD (IN)
0.492
CONDUCTOR MATERIAL
Tinned copper
TEMPERATURE
105°C
JACKET MATERIAL
PVC
JACKET COLOR
Gray
STANDARDS/APPROVALS
VW-1 UL 1685
SHIELDING
SupraShield
AWG/GAUGE
16
VOLTAGE
600V
MANUFACTURER PART NUMBER
5535 SL005

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

5535 SL005 Related Documents

Datasheet.pdf

Manufacturer warranty

5535 SL005 Alpha Wire

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us
