5560C SL002 Alpha Wire Electronic Components

Name: 5560C SL002
Brand: Alpha Wire

5560C SL002 on Advantage Electric Supply

Part#:5560C SL002

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

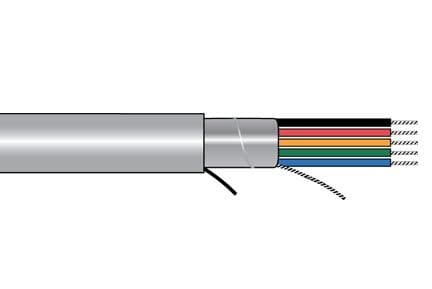

Alpha Xtra-Guard®1 Foil Shield Multiconductor Cable - 20 AWG 5 Conductor - Slate - 300V - 500 ft

Product Details

CONDUCTOR MATERIAL
Tinned copper
JACKET MATERIAL
PVC
NOMINAL OD (MM)
7.4168
SERIES
Xtra-Guard 1
JACKET COLOR
Gray
AWG/GAUGE
20
VOLTAGE
300V
NOMINAL OD (IN)
0.292
STANDARDS/APPROVALS
VW-1 UL 1685
CONDUCTOR STRANDING
Stranded
NUMBER OF CONDUCTORS
5
MANUFACTURER PART NUMBER
5560C SL002
SHIELDING
Foil
TEMPERATURE
105°C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

5560C SL002 Related Documents

Datasheet.pdf

Manufacturer warranty

5560C SL002 Alpha Wire
