5685 SL001 Alpha Wire Industrial Automation Components

Name: 5685 SL001
Brand: Alpha Wire

Part#:5685 SL001

Manufacturer:Alpha Wire

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

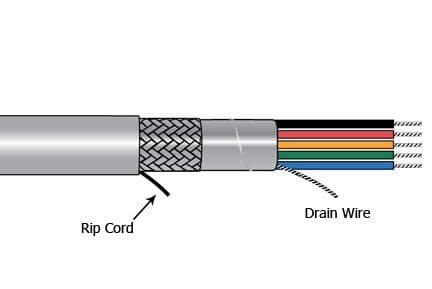

Alpha Xtra-Guard®1 SupraShield Multiconductor Cable - 26 AWG 6 Conductor - Slate - 300V - 1000 ft

Product Details

AWG/GAUGE
26
VOLTAGE
300V
NUMBER OF CONDUCTORS
6
JACKET COLOR
Gray
NOMINAL OD (MM)
5.4356
SHIELDING
SupraShield
SERIES
Xtra-Guard 1
CONDUCTOR STRANDING
Stranded
TEMPERATURE
105°C
JACKET MATERIAL
PVC
STANDARDS/APPROVALS
VW-1 UL 1685
NOMINAL OD (IN)
0.214
MANUFACTURER PART NUMBER
5685 SL001
CONDUCTOR MATERIAL
Tinned copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

5685 SL001 Related Documents

Datasheet.pdf

Manufacturer warranty
