5698 SL002 Alpha Wire Electronic Components

Name: 5698 SL002
Brand: Alpha Wire

Part#:5698 SL002

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

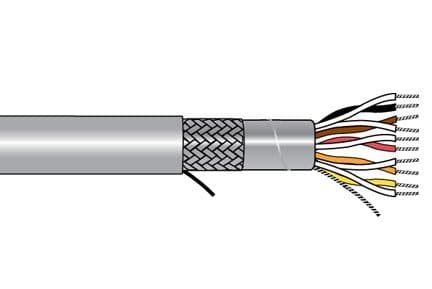

Alpha Xtra-Guard®1 SupraShield Multipair Cable - 26 AWG 5 Pair - Slate - 300V - 500 ft

Product Details

JACKET COLOR
Gray
NOMINAL OD (IN)
0.27
STANDARDS/APPROVALS
VW-1 UL 1685
SHIELDING
SupraShield
CONDUCTOR STRANDING
Stranded
VOLTAGE
300V
AWG/GAUGE
26
CONDUCTOR MATERIAL
Tinned copper
SERIES
Xtra-Guard 1
JACKET MATERIAL
PVC
NUMBER OF CONDUCTORS
5 pair
TEMPERATURE
105°C
NOMINAL OD (MM)
6.858
MANUFACTURER PART NUMBER
5698 SL002

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
