77012 SL005 Alpha Wire Electronic Components

Name: 77012 SL005
Brand: Alpha Wire

77012 SL005 on Advantage Electric Supply

Part#:77012 SL005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

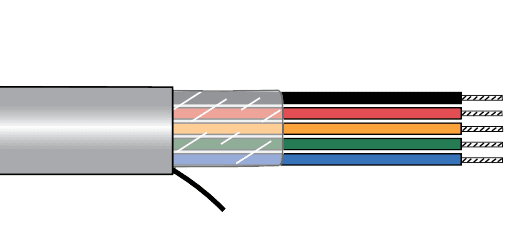

Alpha EcoCable® Unshielded Multiconductor Cable - 22 AWG 19 Conductor - Slate - 600V - 100 ft

Product Details

CONDUCTOR STRANDING
Stranded
TEMPERATURE
-50°C to +105°C
NOMINAL OD (IN)
0.318
NUMBER OF CONDUCTORS
19
AWG/GAUGE
22
CONDUCTOR MATERIAL
Tinned copper
JACKET MATERIAL
mPPE
VOLTAGE
600V
STANDARDS/APPROVALS
CE Approved VW-1 UL AWM 21510
NOMINAL OD (MM)
8.0772
JACKET COLOR
Gray
MANUFACTURER PART NUMBER
77012 SL005
SERIES
EcoCable
SHIELDING
Unshielded

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

77012 SL005 Related Documents

Datasheet.pdf

Manufacturer warranty

77012 SL005 Alpha Wire
