77118 SL001 Alpha Wire Electronic Components

Name: 77118 SL001
Brand: Alpha Wire

77118 SL001 on Advantage Electric Supply

Part#:77118 SL001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

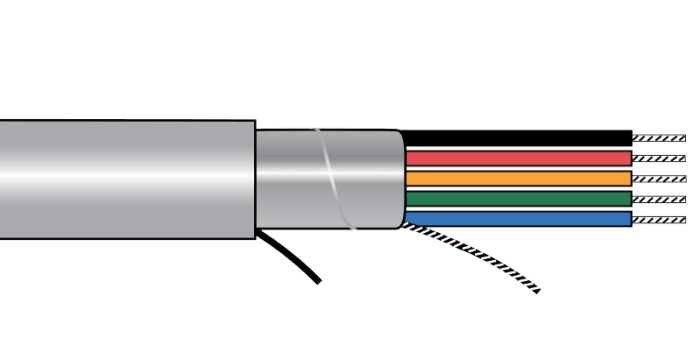

Alpha EcoCable® Foil Shield Multiconductor Cable - 20 AWG 5 Conductor - Slate - 600V - 1000 ft

Product Details

CONDUCTOR MATERIAL
Tinned copper
STANDARDS/APPROVALS
CE Approved VW-1 UL AWM 21510
JACKET COLOR
Gray
CONDUCTOR STRANDING
Stranded
TEMPERATURE
-50°C to +105°C
JACKET MATERIAL
mPPE
NOMINAL OD (MM)
5.842
AWG/GAUGE
20
NUMBER OF CONDUCTORS
5
MANUFACTURER PART NUMBER
77118 SL001
SHIELDING
Foil
VOLTAGE
600V
NOMINAL OD (IN)
0.23
SERIES
EcoCable

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

77118 SL001 Related Documents

Datasheet.pdf

Manufacturer warranty

77118 SL001 Alpha Wire

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare 77118 SL001 with other Electronic Components products
