78192 SL001 Alpha Wire Electronic Components

Name: 78192 SL001
Brand: Alpha Wire

78192 SL001 on Advantage Electric Supply

Part#:78192 SL001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

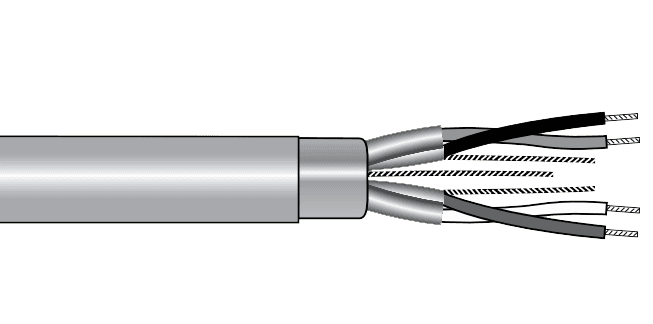

Alpha EcoCable® Mini Foil Shield Multipair Cable - 20 AWG 2 Pair - Slate - 300V - 1000 ft

Product Details

CONDUCTOR STRANDING
Stranded
JACKET MATERIAL
mPPE
CONDUCTOR MATERIAL
Tinned copper
TEMPERATURE
-40°C to +80°C
AWG/GAUGE
20
VOLTAGE
300V
NUMBER OF CONDUCTORS
2 pair
SERIES
EcoCable Mini
SHIELDING
Foil
NOMINAL OD (MM)
5.461
NOMINAL OD (IN)
0.215
STANDARDS/APPROVALS
CE Approved VW-1 UL AWM 21460
JACKET COLOR
Gray
MANUFACTURER PART NUMBER
78192 SL001

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

78192 SL001 Related Documents

Datasheet.pdf

Manufacturer warranty

78192 SL001 Alpha Wire

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us
