782201 BR005 Alpha Wire Electronic Components

Name: 782201 BR005
Brand: Alpha Wire

782201 BR005 on Advantage Electric Supply

Part#:782201 BR005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

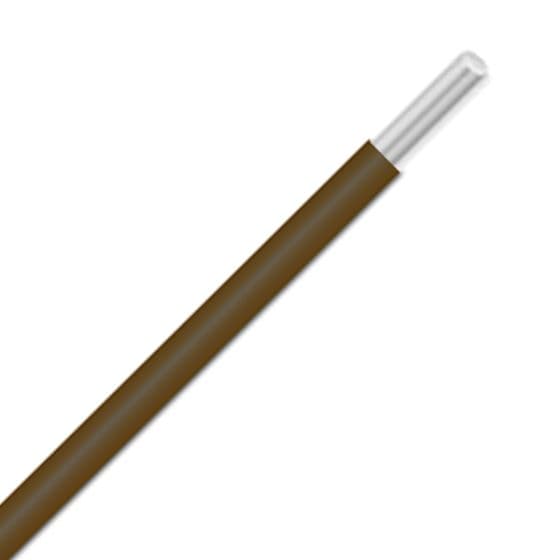

782201 BR005 - Alpha Wire UL 1015/UL 1230 PVC Hook-Up/Lead Wire - 22 AWG - Solid Conductor - Tinned Copper - 600V - Brown - 100ft

Product Details

CONDUCTOR STRANDING
Solid
TEMPERATURE
-40°F to +221°F-40°C to +105°C
CONDUCTOR MATERIAL
Tinned copper
STANDARDS/APPROVALS
UL Approved CSA Approved CE Approved
INSULATION THICKNESS (IN)
0.032
UL STYLE / STANDARD
UL 1015 UL 1230
JACKET COLOR
Brown
ADDITIONAL STANDARDS
CA Prop 65|CE Conformance|UL AWM|UL VW-1
VOLTAGE
600V
INSULATION MATERIAL
PVC
NOMINAL OD (IN)
0.089
CSA TYPE
CSA AWM I A/BCSA FT 1CSA TEW 105
AWG/GAUGE
22
MANUFACTURER PART NUMBER
782201 BR005

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
