78435 SL005 Alpha Wire Electronic Components

78435 SL005 on Advantage Electric Supply
Alpha Wire

Part#:78435 SL005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

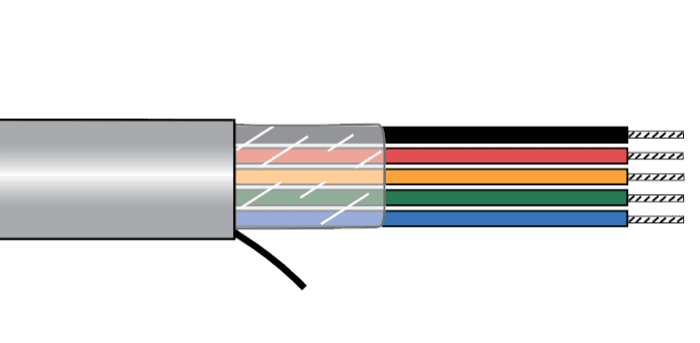

Alpha EcoCable® Mini Unshielded Multiconductor Cable - 20 AWG 25 Conductor - Slate - 300V - 100 ft

Product Details

  • MANUFACTURER PART NUMBER
    78435 SL005
  • NOMINAL OD (MM)
    9.0932
  • STANDARDS/APPROVALS
    CE Approved VW-1 UL AWM 21460
  • TEMPERATURE
    -40°C to +80°C
  • VOLTAGE
    300V
  • AWG/GAUGE
    20
  • SHIELDING
    Unshielded
  • CONDUCTOR STRANDING
    Stranded
  • NOMINAL OD (IN)
    0.358
  • SERIES
    EcoCable Mini
  • JACKET MATERIAL
    mPPE
  • JACKET COLOR
    Gray
  • NUMBER OF CONDUCTORS
    25
  • CONDUCTOR MATERIAL
    Tinned copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

78435 SL005 Related Documents

Datasheet.pdf

Manufacturer warranty

78435 SL005 Alpha Wire
