78450 SL005 Alpha Wire Electronic Components

Name: 78450 SL005
Brand: Alpha Wire

78450 SL005 on Advantage Electric Supply

Part#:78450 SL005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

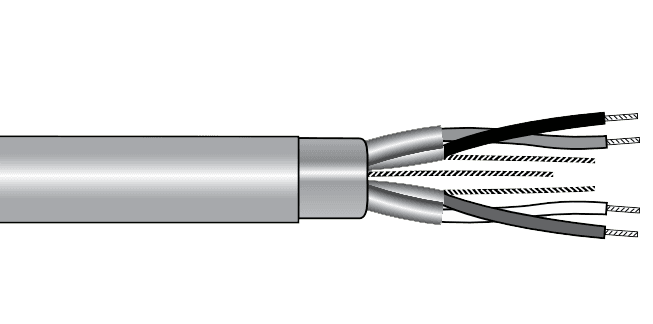

Alpha EcoCable® Mini Foil Shield Multipair Cable - 20 AWG 25 Pair - Slate - 300V - 100 ft

Product Details

NOMINAL OD (IN)
0.569
JACKET COLOR
Gray
VOLTAGE
300V
NUMBER OF CONDUCTORS
25 pair
MANUFACTURER PART NUMBER
78450 SL005
SERIES
EcoCable Mini
NOMINAL OD (MM)
14.4526
CONDUCTOR STRANDING
Stranded
TEMPERATURE
-40°C to +80°C
SHIELDING
Foil
JACKET MATERIAL
mPPE
AWG/GAUGE
20
CONDUCTOR MATERIAL
Tinned copper
STANDARDS/APPROVALS
CE Approved VW-1 UL AWM 21460

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

78450 SL005 Related Documents

Datasheet.pdf

Manufacturer warranty
