79224 SL001 Alpha Wire Electronic Components

Name: 79224 SL001
Brand: Alpha Wire

79224 SL001 on Advantage Electric Supply

Part#:79224 SL001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

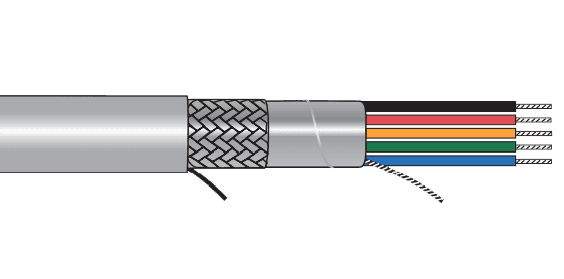

Alpha EcoFlex SupraShield Multiconductor Cable - 16 AWG 12 Conductor - Slate - 1000 ft

Product Details

MANUFACTURER PART NUMBER
79224 SL001
VOLTAGE
600V
STANDARDS/APPROVALS
CE Approved VW-1 UL AWM
TEMPERATURE
-40°C to +105°C
NOMINAL OD (MM)
11.2522
SERIES
EcoFlex
AWG/GAUGE
16
JACKET COLOR
Gray
NOMINAL OD (IN)
0.443
JACKET MATERIAL
mPPE
CONDUCTOR MATERIAL
Tinned copper
SHIELDING
SupraShield
NUMBER OF CONDUCTORS
12
CONDUCTOR STRANDING
Stranded

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
