DR03GR100 SL400 Alpha Wire Electronic Components

DR03GR100 SL400 on Advantage Electric Supply
Alpha Wire

Part#:DR03GR100 SL400

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

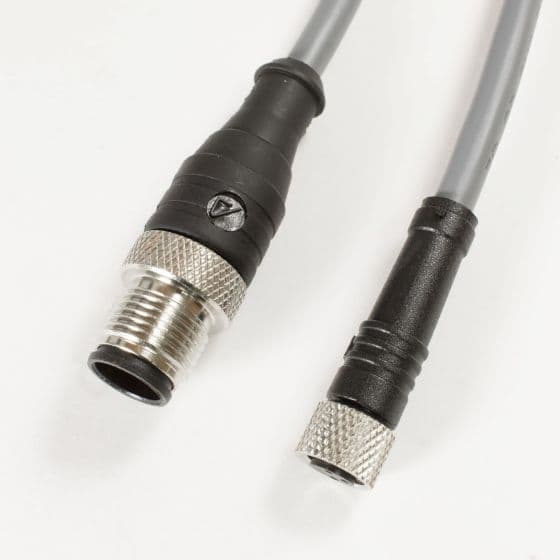

OBSOLETE - Alpha Connect EcoFlex PUR Cordset - M12 Male Straight to M8 Female Straight - 22AWG 3 Poles - DR03GR100 - Slate - 15M (49.2ft)

Product Details

  • MANUFACTURER PART NUMBER
    DR03GR100 SL400
  • TEMPERATURE
    -58°F to +194°F -50°C to +90°C
  • VOLTAGE
    600V
  • LENGTH
    15m (49.21ft)
  • EQUIVALENT TO
    Phoenix Contact 1671768Lumberg RST 3
  • IP RATING
    IP67 IP68
  • CONNECTORS
    M12 Male / M8 Female
  • JACKET MATERIAL
    Zero Halogen Polyurethane
  • NUMBER OF POSITIONS
    3
  • NUMBER OF CONDUCTORS
    3
  • JACKET COLOR
    Gray
  • AWG/GAUGE
    22
  • SHIELDING
    Unshielded
  • SERIES
    Alpha Connect Flexible Cordsets

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DR03GR100 SL400 Related Documents

Datasheet.pdf

Manufacturer warranty
