DR04AW101 SL400 Alpha Wire Electronic Components

Name: DR04AW101 SL400
Brand: Alpha Wire

DR04AW101 SL400 on Advantage Electric Supply

Part#:DR04AW101 SL400

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

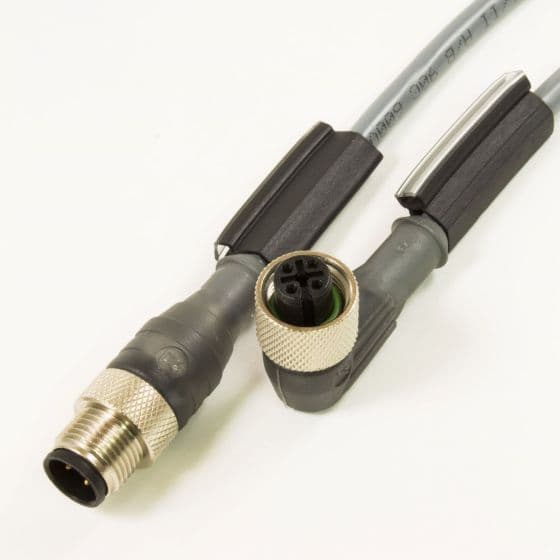

OBSOLETE - Alpha Connect Cordset - M12 Male Straight to M12 Female 90° - 22AWG 4 Poles - DR04AW101 - Slate - 15M (49.2ft)

Product Details

AWG/GAUGE
22
MANUFACTURER PART NUMBER
DR04AW101 SL400
CONNECTORS
M12 Male / M12 Female 90 deg
SERIES
Alpha Connect Flexible Cordsets
IP RATING
IP67 IP68
EQUIVALENT TO
Turck WK 4.4TPhoenix Contact 1697014Lumberg RST 4
JACKET COLOR
Gray
SHIELDING
Unshielded
LENGTH
15m (49.21ft)
NUMBER OF POSITIONS
4
VOLTAGE
600V
NUMBER OF CONDUCTORS
4
TEMPERATURE
-40°F to +221°F -40°C to +105°C
JACKET MATERIAL
Zero Halogen Polyurethane

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DR04AW101 SL400 Related Documents

Datasheet.pdf

Manufacturer warranty
