DR05AR102 SL358 Alpha Wire Electronic Components

Name: DR05AR102 SL358
Brand: Alpha Wire

DR05AR102 SL358 on Advantage Electric Supply

Part#:DR05AR102 SL358

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

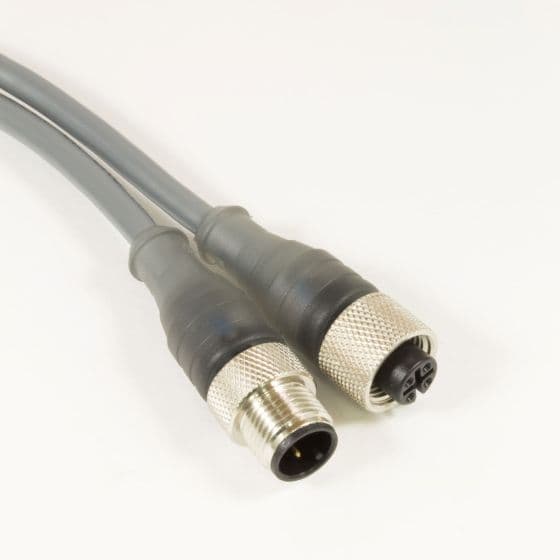

OBSOLETE - Alpha Connect Cordset - M12 Male Straight to M12 Female Straight - 22AWG 2 Poles - DR05AR102 - Slate - 5M (16.4ft)

Product Details

AWG/GAUGE
22
MANUFACTURER PART NUMBER
DR05AR102 SL358
CONNECTORS
M12 Male / M12 Female
VOLTAGE
600V
NUMBER OF POSITIONS
2
LENGTH
5m (16.4ft)
TEMPERATURE
-40°F to +221°F -40°C to +105°C
SHIELDING
Unshielded
IP RATING
IP67 IP68
SERIES
Alpha Connect Flexible Cordsets
NUMBER OF CONDUCTORS
2
EQUIVALENT TO
Lumberg RST 5
JACKET MATERIAL
Zero Halogen Polyurethane
JACKET COLOR
Gray

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DR05AR102 SL358 Related Documents

Datasheet.pdf

Manufacturer warranty
