DW04AR117 TL401 Alpha Wire Electronic Components

Name: DW04AR117 TL401
Brand: Alpha Wire

DW04AR117 TL401 on Advantage Electric Supply

Part#:DW04AR117 TL401

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

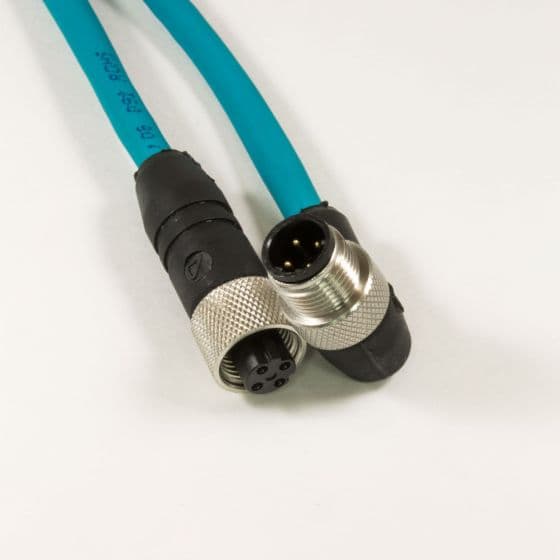

OBSOLETE - Alpha Connect Ethernet Cordset - M12 Male 90 Deg to M12 Female Straight - 24AWG 2 Poles - DW04AR117 - Teal - 20M (65.6ft)

Product Details

AWG/GAUGE
24
TEMPERATURE
-40°F to +167°F -40°C to +75°C
NUMBER OF CONDUCTORS
2
EQUIVALENT TO
Lumberg 0985 806 127
NUMBER OF POSITIONS
2
SHIELDING
Unshielded
JACKET MATERIAL
Thermoplastic Elastomer (TPE)
IP RATING
IP67 IP68
CONNECTORS
M12 Male 90 deg / M12 Female
LENGTH
20m (65.62ft)
VOLTAGE
300V
TYPE
CAT5e
SERIES
Alpha Connect Flexible Cordsets
JACKET COLOR
Teal
MANUFACTURER PART NUMBER
DW04AR117 TL401

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DW04AR117 TL401 Related Documents

Datasheet.pdf

Manufacturer warranty
