M4696 SL001 Alpha Wire Electronic Components

Name: M4696 SL001
Brand: Alpha Wire

M4696 SL001 on Advantage Electric Supply

Part#:M4696 SL001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

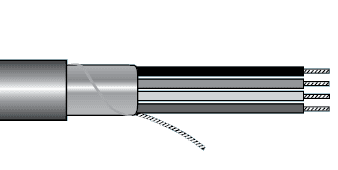

Alpha Essentials Multi-Conductor Cable - Shielded - 18 AWG 6 Conductor - Gray - 300V - 1000ft - Alpha M4696 SL001

Product Details

NUMBER OF CONDUCTORS
6
TEMPERATURE
-4°F to +176deg;F-20°C to +80°C
SHIELDING
Shielded
MANUFACTURER PART NUMBER
M4696 SL001
NOMINAL OD (IN)
0.309
JACKET MATERIAL
PVC
CONDUCTOR MATERIAL
Tinned copper
STANDARDS/APPROVALS
UL Approved CSA Approved CE Approved
JACKET COLOR
Gray
AWG/GAUGE
18
VOLTAGE
300V
CONDUCTOR STRANDING
Stranded
SERIES
Alpha Essentials Multi-Conductor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M4696 SL001 Related Documents

Datasheet.pdf

Manufacturer warranty
