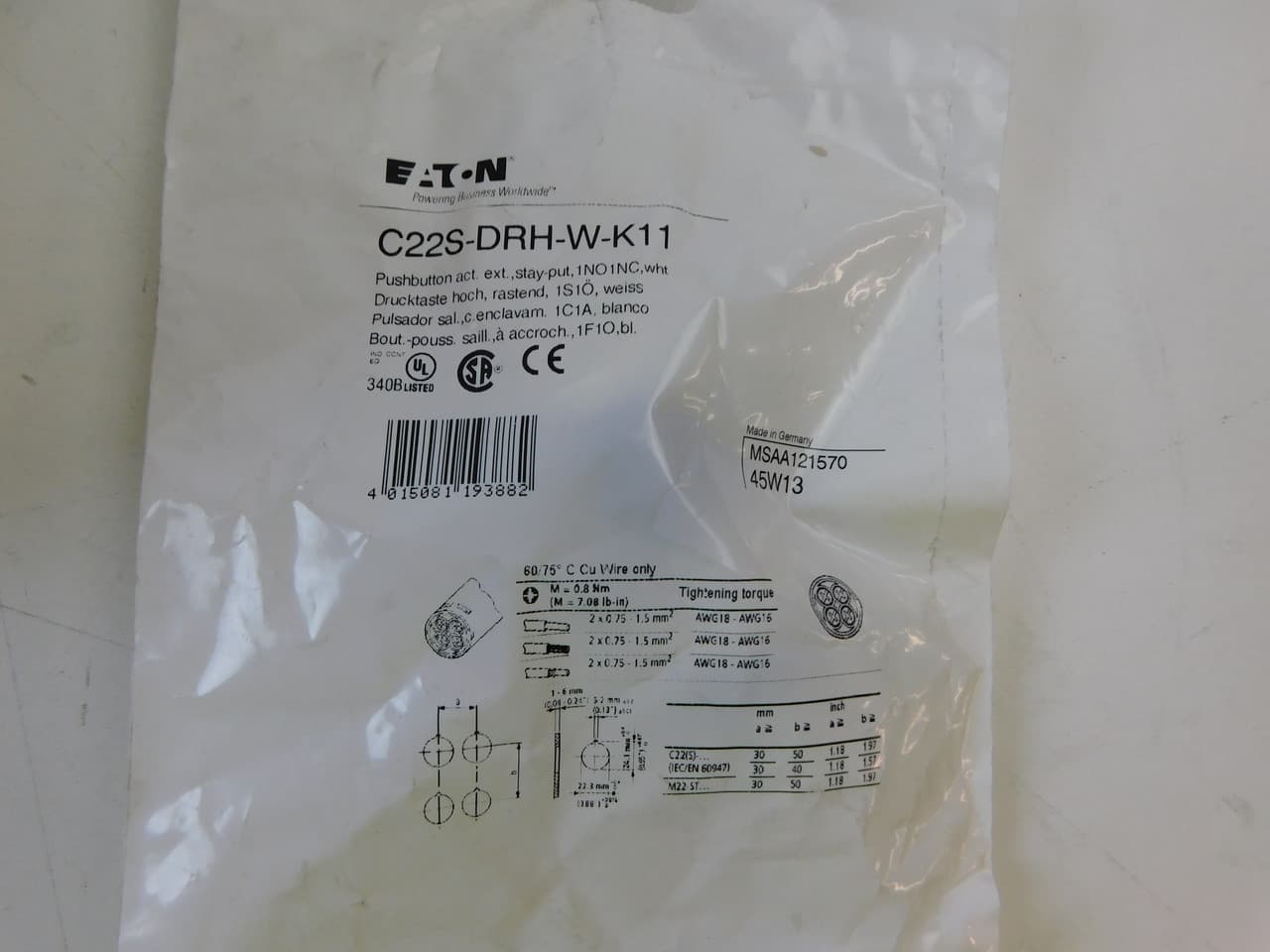

C22S-DRH-W-K11 Eaton Industrial Automation Components

Product Details

• Product Name
  Eaton C22 compact pushbutton
• Series
  C22
• Actuator
  Extended
• EAN
  4015081193882
• Color
  White
• Certifications
  IEC 60947 EN 60947 UL Listed CSA Certified
• Bezel
  Black
• Product Length/Depth
  1.17 in
• Button color
  White
• Warranty
  Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
• Contact configuration
  1 NO-1 NC
• Compliances
  DIN VDE 0600
• Catalog Notes
  Maintained pushbuttons can be converted in the field to momentary operation by switching the locking ring, which is accessible through the side of the operator body.
• Product Weight
  .1 lb
• Type
  Pushbutton
• Product Height
  2.4 in
• Illumination
  Non-illuminated
• Catalog Number
  C22S-DRH-W-K11
• Actuator function
  Maintained
• Product Width
  1.17 in
Size
22.5 millimeters
Shipping Height:
2.00 In.
Contact Configuration:
1NO-1NC
Shipping Length:
9.00 In.
Cap/Lens Color:
White
Series:
C22S
Shipping Width:
5.00 In.
Size:
22.5 Millimeter
Approval:
UL
UPC:
015081193886
Contact Rating:
4 Amp 24 Volt/2 Amp 110 Volt/1.5 Amp 230 Volt (AC-15)
Shipping Weight:
0.10 lbs.
Operation Type:
Maintained
Enclosure:
NEMA 4X/13
Type:
Extended
Height
2.4 inches
Contact Configuration
1NO-1NC
Weight
.1 pounds
Length
1.17 inches
Width
1.17 inches
Bezel Color
Black
