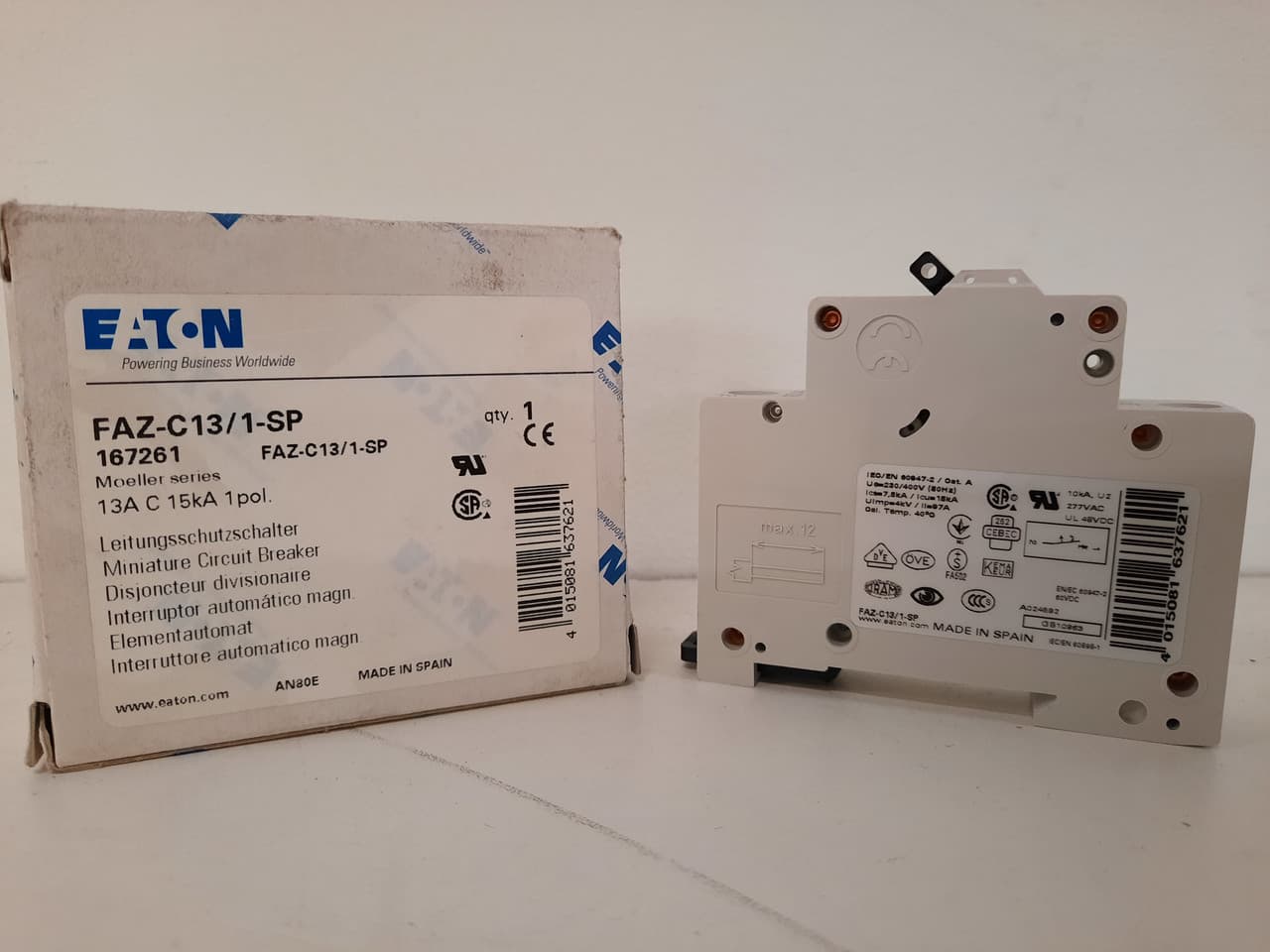

FAZ-C13/1-SP Eaton Miniature Circuit Breakers (MCBs)
Part#:FAZ-C13/1-SP
Manufacturer:Eaton
Category:Miniature Circuit Breakers (MCBs)
Product Lifecycle:Active
Product description
Eaton FAZ supplementary protector,UL 1077 Industrial miniature circuit breaker-supplementary protector,Single package,Medium levels of inrush current are expected,13A,15 kAIC,Single-pole,277 V,5-10X/n,Q38,50-60 Hz,Standard terminals,C Curve
Product Details
- Product Name Eaton FAZ supplementary protector
- Catalog Notes Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices. Single packaging of single-pole curves B, C and D for select amperages only.
- Amperage Rating 13 A
- Warranty 1 year
- Terminals Standard
- Special features Single package
- Number of poles Single-pole
- Certifications UL 1077 CSA Std. C22.2 No.235 IEC 60947-2
- Application Suitable for applications where medium levels of inrush current are expected
- Catalog Number FAZ-C13/1-SP
- Interrupt rating 15 kAIC
- Trip Type 5-10X /n
- EAN 4015081637621
- Type UL 1077 Industrial miniature circuit breaker - supplementary protector
- Product Length/Depth .69 in
- Frequency rating 50-60 Hz
- Product Height 4 in
- Circuit protection C curve
- Product Width 3 in
- Voltage rating 277V
- Product Weight .321 lb
- Quantity 38
- Shipping Length: 4.00 In.
- Type: Current Limiting
- UPC: 015081637625
- Volts: 277 VAC at 50/60 Hertz
- Shipping Width: 3.00 In.
- Mounting: DIN Rail
- Size: 0.7 Inch Width x 3.15 Inch Height
- Series: FAZ
- Trip Setting: 5 to 10 x Rated Current
- Approval: UL 1077
- Interrupting Rating: 10 kA at 277 Volt AC
- Shipping Height: 1.00 In.
- Amps: 32 A
- Shipping Weight: 0.25
- Poles: 1
- Terminal Type: Screw
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
