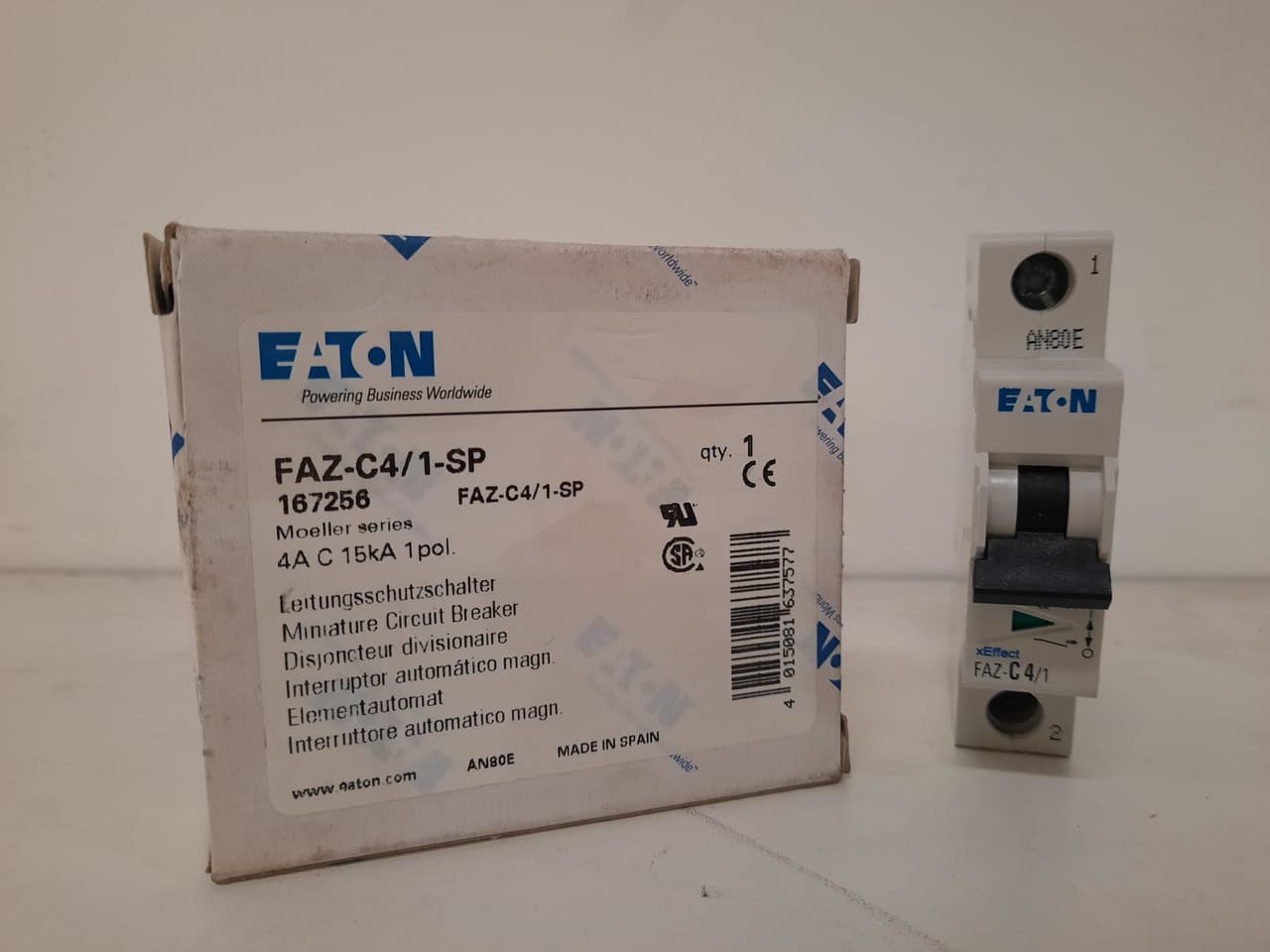

FAZ-C4/1-SP Eaton Miniature Circuit Breakers (MCBs)

Product Details

• Catalog Notes
  Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices. Single packaging of single-pole curves B, C and D for select amperages only.
• Amperage Rating
  4 A
• Product Length/Depth
  .69 in
• Circuit protection
  C curve
• EAN
  4015081637577
• Type
  UL 1077 Industrial miniature circuit breaker - supplementary protector
• Trip Type
  5-10X /n
• Certifications
  IEC 60947-2 UL 1077 CSA Std. C22.2 No.235
• Voltage rating
  277V
• Product Weight
  .3 lb
• Terminals
  Standard
• Warranty
  1 year
• Quantity
  38
• Catalog Number
  FAZ-C4/1-SP
• Frequency rating
  50-60 Hz
• Product Height
  1 in
• Interrupt rating
  15 kAIC
• Product Name
  Eaton FAZ supplementary protector
• Special features
  Single package
• Number of poles
  Single-pole
Product Width
3 in
Application
Suitable for applications where medium levels of inrush current are expected
UPC:
015081637571
Trip Setting:
5 to 10 x Rated Current
Series:
FAZ
Size:
0.7 Inch Width x 3.15 Inch Height
Shipping Weight:
0.30
Shipping Length:
4.00 In.
Shipping Height:
1.00 In.
Interrupting Rating:
10 kA at 277 Volt AC
Type:
Current Limiting
Amps:
32 A
Volts:
277 VAC at 50/60 Hertz
Approval:
UL 1077
Poles:
1
Shipping Width:
3.00 In.
Mounting:
DIN Rail
Terminal Type:
Screw
Width
3 inches
Amperage
4 amperes
Height
1 inch
Weight
.3 pounds
Length
.69 inches
Terminal Type
Standard Terminals
Number of Poles
1
