PDF54N0800D4YM Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDF54N0800D4YM
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description

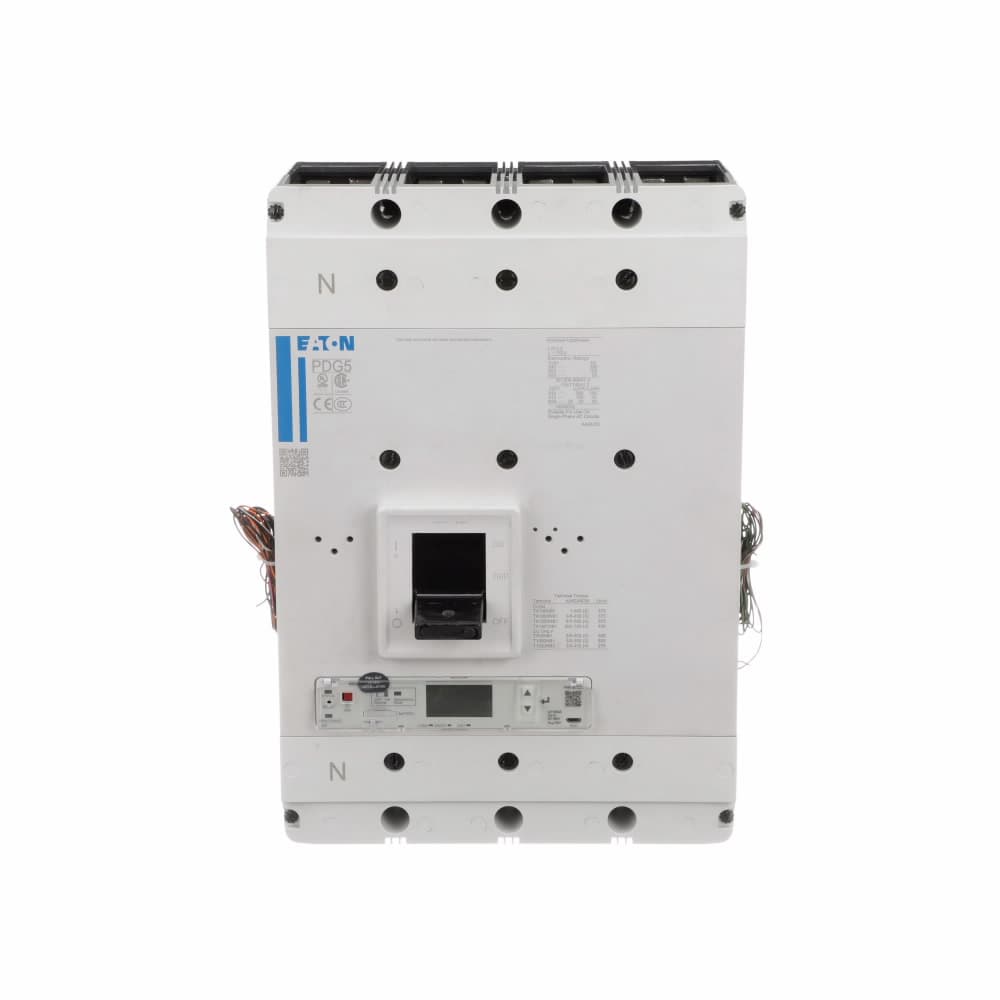

Eaton Power Defense molded case circuit breaker, Globally Rated 100% UL, Frame 5, Four Pole (100% N), 800A, 85kA/480V, PXR20D ARMS LSI w/ Modbus RTU, CAM Link, ZSI and Relays, No Terminals (Metric Tapped Conductors)
Product Details
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Rated operation voltage (Ue) at AC - max 690
- Catalog Number PDF54N0800D4YM
- Frame 5
- Switch off technique Electronic
- UPC 786679700570
- Interrupt rating 85 kAIC at 480 Vac
- Circuit breaker frame type Complete breaker
- Product Length/Depth 139.7 mm
- Amperage Rating 800 A
- Protection 100% neutral protection
- Product Name Eaton Power Defense molded case circuit breaker
- Product Width 282.7 mm
- Number of poles Four-pole (100% N)
- Trip Type PXR 20D LSI w/ARMS
- Special features ZSI / Modbus / Relays / CAM
- Terminals No Terminals
- Class Class A
- Compliances RoHS Compliant
- Circuit breaker type PD5 Global (100% UL)
- Product Height 406.4 mm
- Interrupt rating range 50 kAIC @600/347V (UL) 35 kAIC Icu/ 25 kAIC Ics/ 73.5 kAIC Icm @525V South Africa (IEC) 70 kAIC Icu/ 50 kAIC Ics/ 154 kAIC Icm @440V (IEC) 150 kAIC @240V (UL) 70 kAIC Icu/ 50 kAIC Ics/ 154 kAIC Icm @380-415V (IEC) 20 kAIC Icu/ 10 kAIC Ics/ 42 kAIC Ic
- Voltage rating 600 Vac
- Voltage rating - max 600 V
- Product Weight 21.32 kg
- Certifications IEC 60947-2 CCC Marked
- Communication Modbus RTU and CAM Link
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PDF54N0800D4YM Eaton
