PDF63M1600E4CM Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDF63M1600E4CM
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description

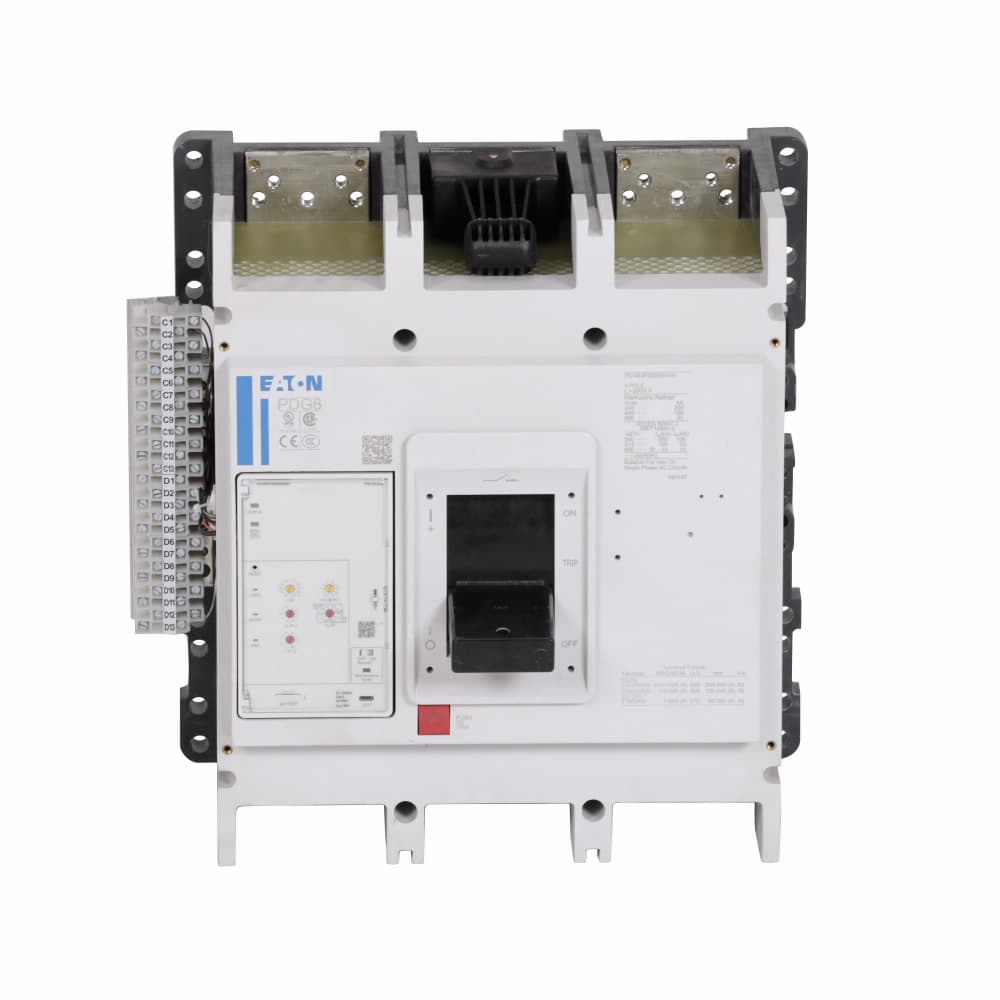

Eaton Power Defense molded case circuit breaker, Globally Rated 100% UL, Frame 6, Three Pole, 1600A, 65kA/480V, PXR20 ARMS LSI w/ CAM Link and Relays, No Terminals (Metric Tapped Conductors)
Product Details
- Communication CAM Link
- Terminals No Terminals
- Circuit breaker frame type Complete breaker
- Trip Type PXR 20 LSI w/ARMS
- Voltage rating 600 Vac
- Number of poles Three-pole
- Switch off technique Electronic
- Interrupt rating range 30 kAIC Icu/ 25 kAIC Ics/ 63 kAIC Icm @525V South Africa (IEC) 50 kAIC Icu/ 40 kAIC Ics/ 105 kAIC Icm @440V (IEC) 100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC) 50 kAIC Icu/ 30 kAIC Ics/ 105 kAIC Icm @480V Brazil (IEC) 70 kAIC Icu/ 50 kAIC Ics/
- Circuit breaker type PD6 Global (100% UL)
- Voltage rating - max 600 V
- Trip rating 1600 A
- Class Class A
- Amperage Rating 1600 A
- Frame 6
- Interrupt rating 65 kAIC at 480 Vac
- Special features CAM / Relays
- Compliances RoHS Compliant
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Product Weight 77.11 kg
- Rated operation voltage (Ue) at AC - max 690
- Product Width 393.7 mm
- Certifications IEC 60947-2 CCC Marked
- Product Height 406.4 mm
- Product Name Eaton Power Defense molded case circuit breaker
- Product Length/Depth 247.7 mm
- UPC 786679854099
- Catalog Number PDF63M1600E4CM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PDF63M1600E4CM Eaton
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare PDF63M1600E4CM with other Molded Case Circuit Breakers (MCCB) products
Communication
Terminals
Circuit breaker frame typ...
Trip Type
Voltage rating
Number of poles
Switch off technique
Interrupt rating range
Circuit breaker type
Voltage rating - max
Selected product
PDF63M1600E4CM
Eaton
Eaton Power Defense molded case circuit breaker, Globally Rated 100% UL, Frame 6, Three Pole, 1600A,...
CommunicationCAM Link
TerminalsNo Terminals
Circuit breaker frame typeComplete breaker
Trip TypePXR 20 LSI w/ARMS
Voltage rating600 Vac
Number of polesThree-pole
Switch off techniqueElectronic
Interrupt rating range30 kAIC Icu/ 25 kAIC Ics/ 63...
Circuit breaker typePD6 Global (100% UL)
Voltage rating - max600 V
Communication-
Terminals-
Circuit breaker frame type-
Trip Type-
Voltage rating-
Number of poles-
Switch off technique-
Interrupt rating range-
Circuit breaker type-
Voltage rating - max-
About the manufacturer
Advantage Electric Supply is an authorized Eaton distributor, dedicated to bringing you the highest-quality industrial solutions. Eaton, a global leader in power management and electrical components, specializes in a wide array of products designed to optimize operational efficiency and enhance safety across various industries. From electrical control systems to cutting-edge automation technologie...
About the Product Category
An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.
Eaton Power Defense molded case circuit breaker, Globally Rated 100% UL, Frame 6, Three Pole, 1600A, 65kA/480V, PXR20 ARMS LSI w/ CAM Link and Relays, No Terminals (Metric Tapped Conductors)
