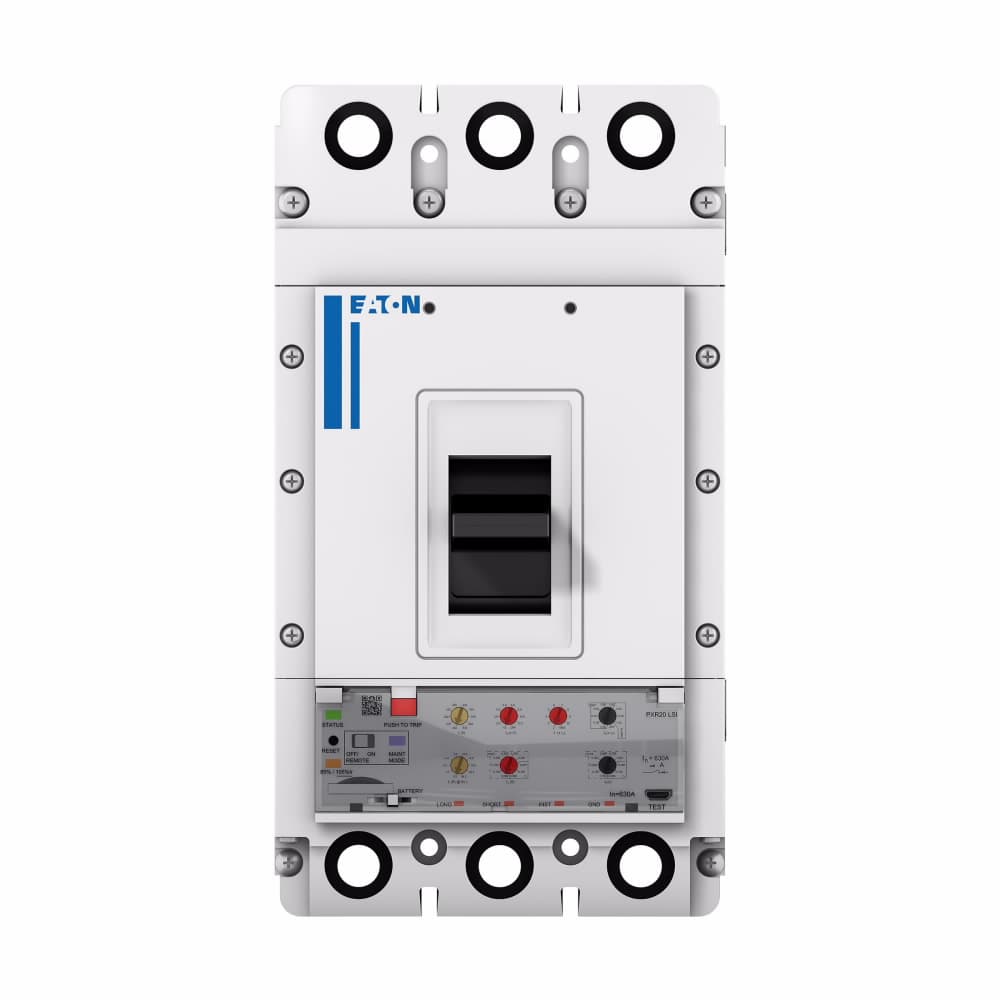

PDG32F0250E5ZN Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG32F0250E5ZN
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 25kA/480V, PXR20 ARMS LSIG w/ ZSI and Relays, No Terminals
Product Details
- Catalog Number PDG32F0250E5ZN
- Circuit breaker type PD3 Global
- Voltage rating - max 600 V
- Class Class A
- Product Length/Depth 109.1 mm
- Trip rating 250 A
- Voltage rating 600 Vac
- Compliances RoHS Compliant
- Special features ZSI / Relays
- Trip Type PXR 20 LSIG w/ARMS
- Product Width 138.9 mm
- Certifications IEC 60947-2 CSA UL 489 CCC Marked
- Amperage Rating 250 A
- Product Name Eaton Power Defense molded case circuit breaker
- Frame 3
- Switch off technique Electronic
- UPC 786679532157
- Rated operation voltage (Ue) at AC - max 600
- Terminals No Terminals
- Product Weight 5.2163 kg
- Interrupt rating range 25 kAIC @480V (UL) 14 kAIC @600V (UL/CSA) 20 kAIC Icu/ 20 kAIC Ics/ 42 kAIC Icm @480V Brazil (IEC) 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @440V (IEC) 35 kAIC Icu/ 35 kAIC Ics/ 73.5 kAIC Icm @240V (IEC) 18 kAIC Icu/ 5 kAIC Ics/ 37.8 kAIC Icm @525V So
- Product Height 257.1 mm
- Number of poles Two-pole
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Interrupt rating 25 kAIC at 480 Vac
- Circuit breaker frame type Complete breaker
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
