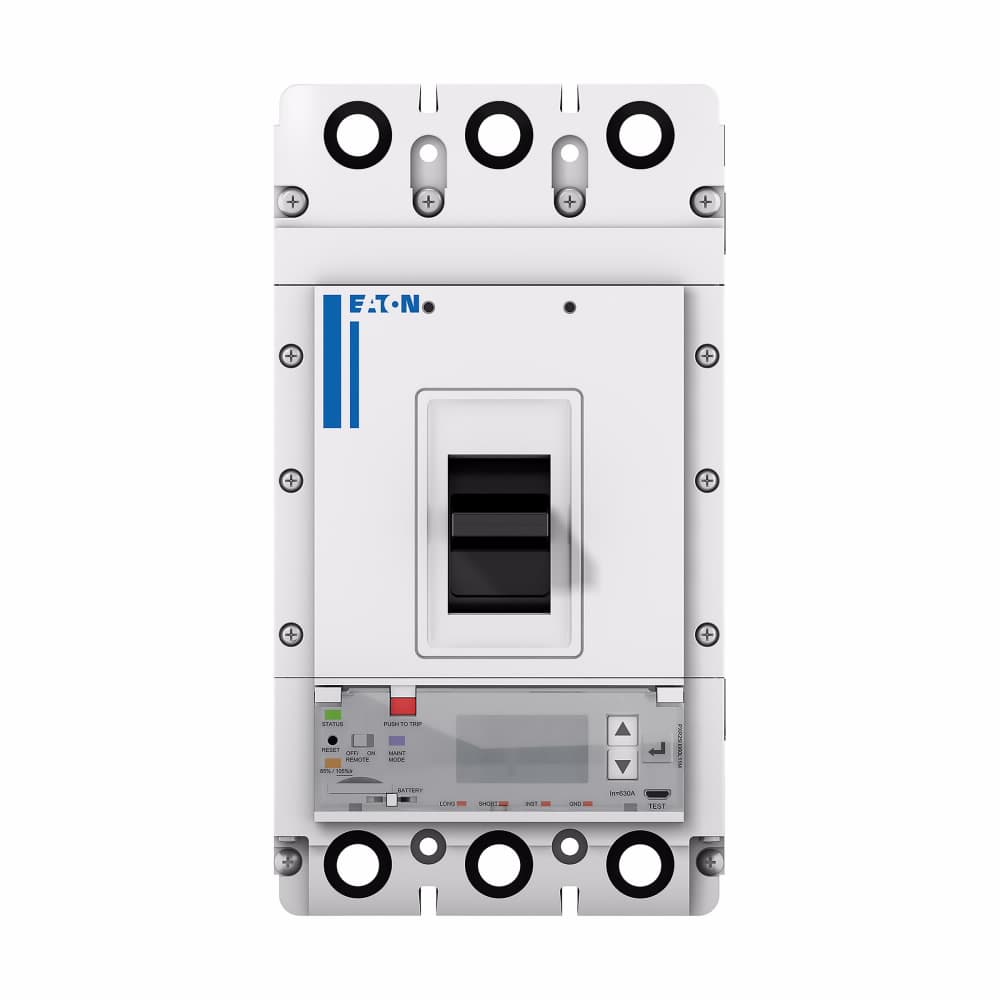

PDG32F0250P3DL Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG32F0250P3DL
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 25kA/480V, PXR25 LSIG w/ Modbus RTU, CAM Link and Relays, Standard Terminals Load Only (PDG3X2TA350)
Product Details
- Compliances RoHS Compliant
- Voltage rating - max 600 V
- Product Height 257.1 mm
- Frame 3
- Circuit breaker frame type Complete breaker
- Certifications CCC Marked UL 489 IEC 60947-2 CSA
- Switch off technique Electronic
- Product Width 138.9 mm
- Circuit breaker type PD3 Global
- Product Weight 5.2163 kg
- Class Class A
- Communication Modbus RTU and CAM Link
- UPC 786679725252
- Rated operation voltage (Ue) at AC - max 600
- Voltage rating 600 Vac
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Number of poles Two-pole
- Product Name Eaton Power Defense molded case circuit breaker
- Special features Modbus / Relays / CAM
- Interrupt rating range 25 kAIC Icu/ 25 kAIC Ics/ 52.5 kAIC Icm @380-415V (IEC) 20 kAIC Icu/ 20 kAIC Ics/ 42 kAIC Icm @480V Brazil (IEC) 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @440V (IEC) 35 kAIC @240V (UL) 35 kAIC Icu/ 35 kAIC Ics/ 73.5 kAIC Icm @240V (IEC) 10 kAIC Icu @2
- Catalog Number PDG32F0250P3DL
- Amperage Rating 250 A
- Trip Type PXR 25 LSIG
- Product Length/Depth 109.1 mm
- Interrupt rating 25 kAIC at 480 Vac
- Terminals Standard Terminals Load Only
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PDG32F0250P3DL Eaton
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare PDG32F0250P3DL with other Molded Case Circuit Breakers (MCCB) products
Compliances
Voltage rating - max
Product Height
Frame
Circuit breaker frame typ...
Certifications
Switch off technique
Product Width
Circuit breaker type
Product Weight
Selected product
PDG32F0250P3DL
Eaton
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 25kA/480V,...
CompliancesRoHS Compliant
Voltage rating - max600 V
Product Height257.1 mm
Frame3
Circuit breaker frame typeComplete breaker
CertificationsCCC Marked UL 489 IEC 6094...
Switch off techniqueElectronic
Product Width138.9 mm
Circuit breaker typePD3 Global
Product Weight5.2163 kg
Compliances-
Voltage rating - max-
Product Height-
Frame-
Circuit breaker frame type-
Certifications-
Switch off technique-
Product Width-
Circuit breaker type-
Product Weight-
About the manufacturer
Advantage Electric Supply is an authorized Eaton distributor, dedicated to bringing you the highest-quality industrial solutions. Eaton, a global leader in power management and electrical components, specializes in a wide array of products designed to optimize operational efficiency and enhance safety across various industries. From electrical control systems to cutting-edge automation technologie...
About the Product Category
An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.
