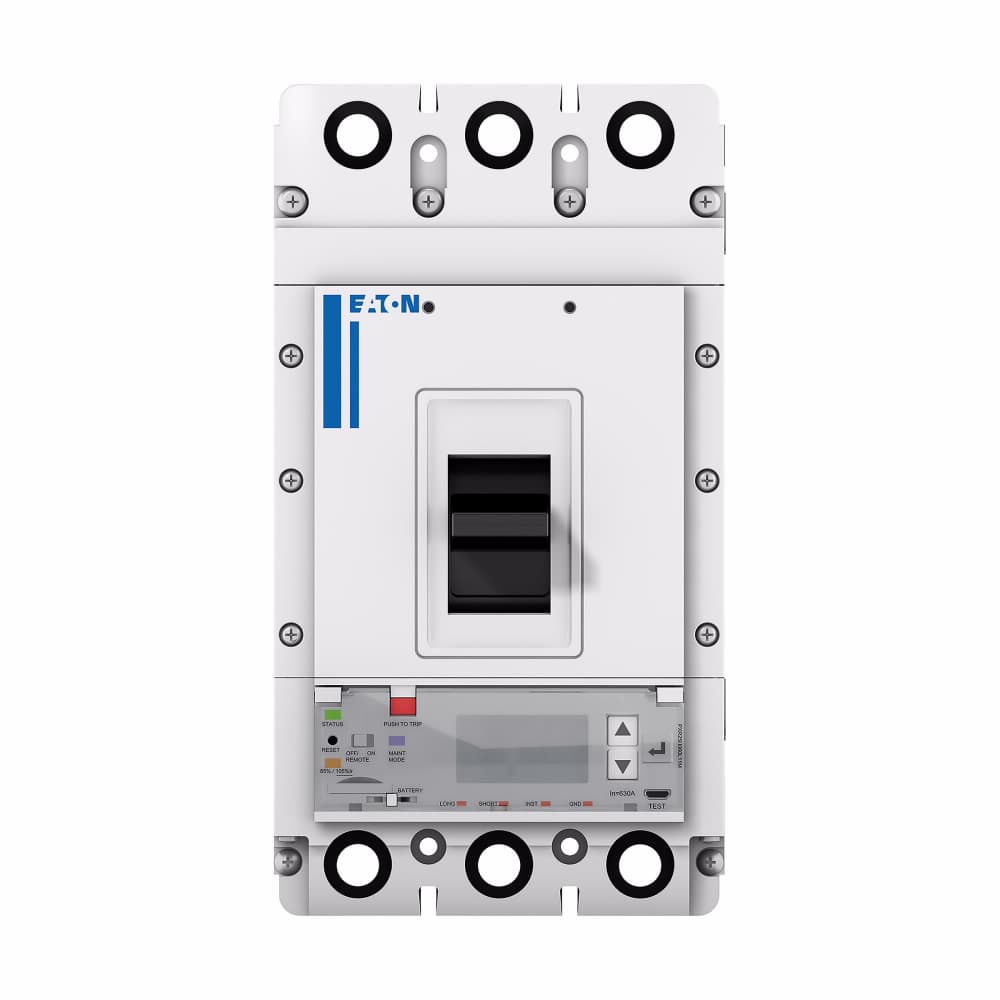

PDG32F0250P4MK Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG32F0250P4MK
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 25kA/480V, PXR25 ARMS LSI w/ Modbus RTU and Relays, Standard Terminals Line Only (PDG3X2TA350)
Product Details
- Product Height 257.1 mm
- Amperage Rating 250 A
- Circuit breaker frame type Complete breaker
- Product Name Eaton Power Defense molded case circuit breaker
- Special features Modbus / relays
- Class Class A
- Catalog Number PDG32F0250P4MK
- Voltage rating - max 600 V
- Terminals Standard Terminals Line Only
- UPC 786679890578
- Interrupt rating range 10 kAIC Icu @250 Vdc 35 kAIC @240V (UL) 25 kAIC @480V (UL) 25 kAIC Icu/ 25 kAIC Ics/ 52.5 kAIC Icm @380-415V (IEC) 18 kAIC Icu/ 5 kAIC Ics/ 37.8 kAIC Icm @525V South Africa (IEC) 35 kAIC Icu/ 35 kAIC Ics/ 73.5 kAIC Icm @240V (IEC) 14 kAIC @600V (UL/
- Compliances RoHS Compliant
- Interrupt rating 25 kAIC at 480 Vac
- Voltage rating 600 Vac
- Product Weight 5.2163 kg
- Rated operation voltage (Ue) at AC - max 600
- Product Width 138.9 mm
- Number of poles Two-pole
- Trip Type PXR 25 LSI w/ARMS
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Frame 3
- Switch off technique Electronic
- Product Length/Depth 109.1 mm
- Certifications IEC 60947-2 UL 489 CCC Marked CSA
- Circuit breaker type PD3 Global
- Communication Modbus RTU
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PDG32F0250P4MK Eaton
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare PDG32F0250P4MK with other Molded Case Circuit Breakers (MCCB) products
Product Height
Amperage Rating
Circuit breaker frame typ...
Product Name
Special features
Class
Catalog Number
Voltage rating - max
Terminals
UPC
Selected product
PDG32F0250P4MK
Eaton
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 25kA/480V,...
Product Height257.1 mm
Amperage Rating250 A
Circuit breaker frame typeComplete breaker
Product NameEaton Power Defense molded c...
Special featuresModbus / relays
ClassClass A
Catalog NumberPDG32F0250P4MK
Voltage rating - max600 V
TerminalsStandard Terminals Line Only
UPC786679890578
Product Height-
Amperage Rating-
Circuit breaker frame type-
Product Name-
Special features-
Class-
Catalog Number-
Voltage rating - max-
Terminals-
UPC-
About the manufacturer
Advantage Electric Supply is an authorized Eaton distributor, dedicated to bringing you the highest-quality industrial solutions. Eaton, a global leader in power management and electrical components, specializes in a wide array of products designed to optimize operational efficiency and enhance safety across various industries. From electrical control systems to cutting-edge automation technologie...
About the Product Category
An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.
