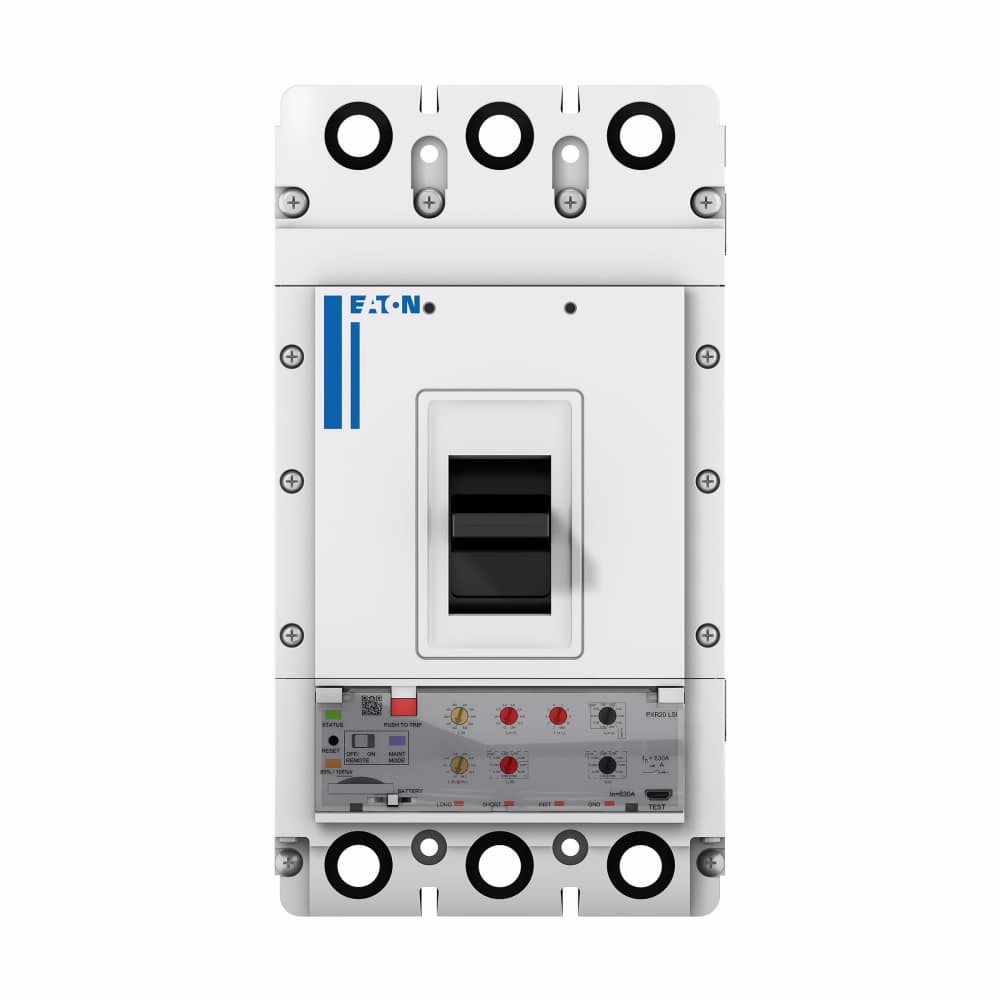

PDG32NH400D4DJ Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG32NH400D4DJ
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 400A High Override, 85kA/480V, PXR20D ARMS LSI w/ Modbus RTU, CAM Link and Relays, Standard Line and Load (PDG3X2TA631)
Product Details
- Communication Modbus RTU and CAM Link
- Trip Type PXR 20D LSI w/ARMS
- Terminals Standard Line and Load
- Voltage rating 600 Vac
- Circuit breaker frame type Complete breaker
- Class Class A
- Switch off technique Electronic
- Interrupt rating range 22 kAIC Icu @250 Vdc 150 kAIC @240V (UL)
- Amperage Rating 400A High Override
- Rated operation voltage (Ue) at AC - max 600
- Frame 3
- Special features Modbus / Relays / CAM
- Number of poles Two-pole
- Interrupt rating 85 kAIC at 480 Vac
- Circuit breaker type PD3 Global
- Voltage rating - max 600 V
- Catalog Number PDG32NH400D4DJ
- Certifications UL 489 CSA CCC Marked IEC 60947-2
- Compliances RoHS Compliant
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Product Weight 5.2163 kg
- Product Width 138.9 mm
- Product Length/Depth 109.1 mm
- Product Height 257.1 mm
- UPC 786679423257
- Product Name Eaton Power Defense molded case circuit breaker
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PDG32NH400D4DJ Eaton
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare PDG32NH400D4DJ with other Molded Case Circuit Breakers (MCCB) products
Communication
Trip Type
Terminals
Voltage rating
Circuit breaker frame typ...
Class
Switch off technique
Interrupt rating range
Amperage Rating
Rated operation voltage (...
Selected product
PDG32NH400D4DJ
Eaton
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 400A High Overri...
CommunicationModbus RTU and CAM Link
Trip TypePXR 20D LSI w/ARMS
TerminalsStandard Line and Load
Voltage rating600 Vac
Circuit breaker frame typeComplete breaker
ClassClass A
Switch off techniqueElectronic
Interrupt rating range22 kAIC Icu @250 Vdc 150 kA...
Amperage Rating400A High Override
Rated operation voltage (Ue) at AC - max600
Communication-
Trip Type-
Terminals-
Voltage rating-
Circuit breaker frame type-
Class-
Switch off technique-
Interrupt rating range-
Amperage Rating-
Rated operation voltage (Ue) at AC - max-
About the manufacturer
Advantage Electric Supply is an authorized Eaton distributor, dedicated to bringing you the highest-quality industrial solutions. Eaton, a global leader in power management and electrical components, specializes in a wide array of products designed to optimize operational efficiency and enhance safety across various industries. From electrical control systems to cutting-edge automation technologie...
About the Product Category
An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.
