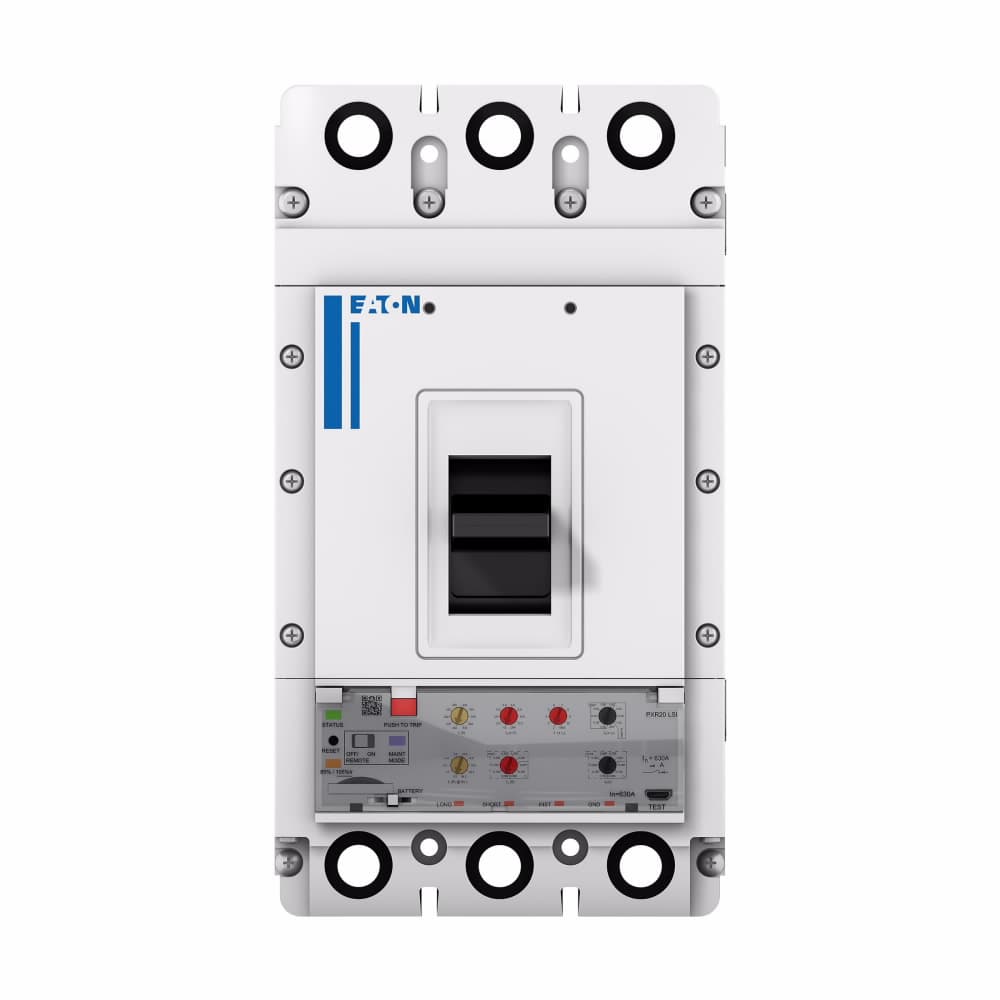

PDG32P0125E3WL Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG32P0125E3WL
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 125A, 100kA/480V, PXR20 LSIG w/ Modbus RTU, ZSI and Relays, Standard Terminals Load Only (PDG3X2TA300)
Product Details
- Product Weight 5.2163 kg
- Voltage rating - max 600 V
- Terminals Standard Terminals Load Only
- Certifications IEC 60947-2 CSA CCC Marked UL 489
- Interrupt rating range 40 kAIC Icu/ 25 kAIC Ics/ 84 kAIC Icm @525V South Africa (IEC) 100 kAIC @480V (UL) 65 kAIC @600V (UL/CSA) 100 kAIC Icu/ 70 kAIC Ics/ 220 kAIC Icm @380-415V (IEC) 85 kAIC Icu/ 40 kAIC Ics/ 187 kAIC Icm @480V Brazil (IEC) 200 kAIC Icu/ 150 kAIC Ics/ 44
- Product Height 257.1 mm
- Rated operation voltage (Ue) at AC - max 600
- Trip Type PXR 20 LSIG
- Product Width 138.9 mm
- Amperage Rating 125 A
- UPC 786679908938
- Frame 3
- Circuit breaker frame type Complete breaker
- Catalog Number PDG32P0125E3WL
- Special features ZSI / Modbus / Relays
- Voltage rating 600 Vac
- Compliances RoHS Compliant
- Circuit breaker type PD3 Global
- Product Name Eaton Power Defense molded case circuit breaker
- Interrupt rating 100 kAIC at 480 Vac
- Switch off technique Electronic
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Number of poles Two-pole
- Communication Modbus RTU
- Product Length/Depth 109.1 mm
- Trip rating 125 A
- Class Class A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PDG32P0125E3WL Eaton
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare PDG32P0125E3WL with other Molded Case Circuit Breakers (MCCB) products
Product Weight
Voltage rating - max
Terminals
Certifications
Interrupt rating range
Product Height
Rated operation voltage (...
Trip Type
Product Width
Amperage Rating
Selected product
PDG32P0125E3WL
Eaton
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 125A, 100kA/480V...
Product Weight5.2163 kg
Voltage rating - max600 V
TerminalsStandard Terminals Load Only
CertificationsIEC 60947-2 CSA CCC Marked...
Interrupt rating range40 kAIC Icu/ 25 kAIC Ics/ 84...
Product Height257.1 mm
Rated operation voltage (Ue) at AC - max600
Trip TypePXR 20 LSIG
Product Width138.9 mm
Amperage Rating125 A
Product Weight-
Voltage rating - max-
Terminals-
Certifications-
Interrupt rating range-
Product Height-
Rated operation voltage (Ue) at AC - max-
Trip Type-
Product Width-
Amperage Rating-
About the manufacturer
Advantage Electric Supply is an authorized Eaton distributor, dedicated to bringing you the highest-quality industrial solutions. Eaton, a global leader in power management and electrical components, specializes in a wide array of products designed to optimize operational efficiency and enhance safety across various industries. From electrical control systems to cutting-edge automation technologie...
About the Product Category
An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 125A, 100kA/480V, PXR20 LSIG w/ Modbus RTU, ZSI and Relays, Standard Terminals Load Only (PDG3X2TA300)
