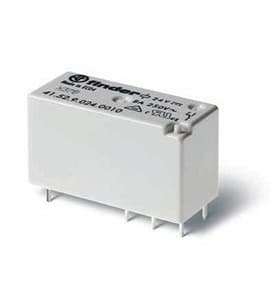

41.52.9.024.0010 Finder Control Relays

41.52.9.024.0010 on Advantage Electric Supply
Finder

Part#:41.52.9.024.0010

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Finder 41.52.9.024.0010 is a relay with solder pin connection type, designed for a rated current of 8A at 250Vac (AC-1) and 8A at 30Vdc (DC-1), with lower current ratings of 0.3A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is capable of handling ambient air temperatures from -40 to +85 degrees Celsius for operation and storage. The relay supports a rated voltage of 250Vac, with a control voltage peak of 6 kV. It features a net width of 15.7 mm, a mounting mode width of 29 mm, and a power consumption depth of 12.6 mm. Designed for PCB or plug-in mounting, it has 2 poles and is rated for 60,000 operations with Normally Closed (NC) circuits, and a durability of 10,000,000 operations. The contact material is AgNi (Silver Nickel).

Product Details

  • Primary brand
    Finder
  • Rated current
    8A (250Vac; AC-1) 8A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Control Voltage (DC)
    24Vdc
  • Electrical durability (with load)
    60 000 operations
  • Net Depth (mm)
    12.6 mm
  • Product series / family name
    41 series
  • Poles
    2 Pole(s)
  • Mechanical durability (at no load)
    10 000 000 operations
  • Contacts coating
    AgNi (Silver Nickel)
  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Degree of protection
    RT II
  • Net Width (mm)
    29 mm
  • Rated power
    400VA (230Vac; AC-15) 2000VA (250Vac; AC-1)
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Ambient air temperature for operation
    -40...+85 °C
  • Net Height (mm)
    15.7 mm
  • Connection type
    Solder pin
  • Compliant with standard(s)
    cURus RINA IMQ VDE EAC EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61810-1 EN 62314
  • Mounting mode
    PCB Plug-in
  • Rated impulse voltage (Uimp)
    6 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

41.52.9.024.0010 Related Documents

Finder - 41 Series - Catalogue.pdf
