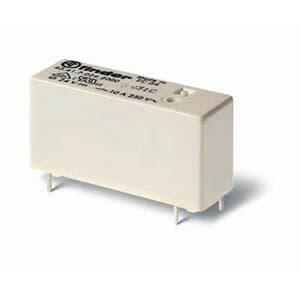

43.41.7.024.2001 Finder Control Relays

43.41.7.024.2001 on Advantage Electric Supply
Finder

Part#:43.41.7.024.2001

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Finder 43.41.7.024.2001 is a relay with a solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.3A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 1C/O / SPDT (Single Pole Double Throw), and is capable of handling ambient air temperatures for operation and storage from -40 to +85 degrees Celsius. The relay supports a rated voltage of 250Vac, with a control voltage of 6 kV, and is designed for PCB plug-in mounting. It has a net width of 15.4 mm, a mounting mode depth of 30.2 mm, and a power consumption of 0.25 W. The visual position indicator has a 3.2mm pins pitch, and the relay is rated for 100,000 operations for Normally Closed (NC) circuits and 10,000,000 operations overall. The contact material is AgCdO (Silver Cadmium Oxide), ensuring compatibility with a wide range of applications.

Product Details

  • Distance
    3.2mm pins pitch
  • Connection type
    Solder pin
  • Mechanical durability (at no load)
    10 000 000 operations
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Width (mm)
    30.2 mm
  • Product series / family name
    43 series
  • Rated voltage (AC)
    250Vac
  • Degree of protection
    RT III
  • Compliant with standard(s)
    cURus IMQ VDE CE EN 61000-4-5 EN 61810-1
  • Net Height (mm)
    15.4 mm
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Control Voltage (DC)
    24Vdc
  • Power consumption
    0.25 W
  • Net Depth (mm)
    10.2 mm
  • Primary brand
    Finder
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1) 0.25W
  • Mounting mode
    PCB Plug-in
  • Electrical durability (with load)
    100 000 operations
  • Contacts coating
    AgCdO (Silver Cadmium Oxide)
  • Main function
    Relay
  • Poles
    1 Pole(s)
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Ambient air temperature for operation
    -40...+85 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

43.41.7.024.2001 Related Documents

Finder - 43 Series - Catalogue.pdf
