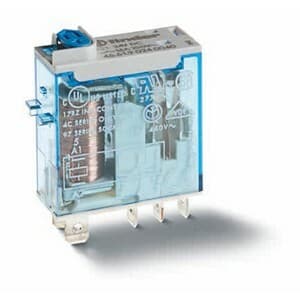

46.61.8.012.0054 Finder Control Relays

46.61.8.012.0054 on Advantage Electric Supply
Finder

Part#:46.61.8.012.0054

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Miniature industrial electromechanical relay with LED + mechanical indicators + lockable test button - Finder (46 series) - Control coil voltage 12Vac (50Hz/60Hz) - 1 pole (1P) - 1C/O / SPDT (Single Pole Double Throw) contact - Rated current 16A (250Vac;

Product Details

  • Primary brand
    Finder
  • Mounting mode
    Plug-in
  • Electrical durability (with load)
    100 000 operations
  • Contacts coating
    AgNi (Silver Nickel)
  • Product series / family name
    46 series
  • Poles
    1 Pole(s)
  • Power consumption
    0.5 W
  • Net Width (mm)
    29 mm
  • Rated voltage (AC)
    250Vac
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Mechanical durability (at no load)
    10 000 000 operations
  • Net Depth (mm)
    12.4 mm
  • Rated current
    16A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.15A (220Vdc; DC-1)
  • Rated power
    750VA (230Vac; AC-15) 4000VA (250Vac; AC-1) 0.5W
  • Control Voltage (AC)
    12Vac (50Hz/60Hz)
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 60664-1 EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Net Height (mm)
    39.3 mm
  • Main function
    Relay
  • Connection type
    Fast-on 187
  • Ambient air temperature for operation
    -40...+70 °C
  • Rated impulse voltage (Uimp)
    6 kV
  • Degree of pollution
    3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

46.61.8.012.0054 Related Documents

Finder - 46 Series - Catalogue.pdf
