65.61.9.024.0300 Finder Control Relays

65.61.9.024.0300 on Advantage Electric Supply
Finder

Part#:65.61.9.024.0300

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Electromechanical power relay with rear flange mount + 3mm contact gap - Finder (65 series) - Control coil voltage 24Vdc - 2 poles (2P) - 1NO+1NC contacts - Rated current 30A (250Vac; AC-1) / 30A (30Vdc; DC-1) - Rated switching power 1250VA (230Vac; AC-15

Product Details

  • Product series / family name
    65 series
  • Poles
    2 Pole(s)
  • Ambient air temperature for operation
    -40...+75 °C
  • Net Width (mm)
    32.2 mm
  • Primary brand
    Finder
  • Rated power
    1250VA (230Vac; AC-15) 7500VA (250Vac; AC-1)
  • Number of Normally Open (NO) circuits
    1 NO Pole(s)
  • Contacts coating
    AgCdO (Silver Cadmium Oxide)
  • Net Height (mm)
    42.2 mm
  • Rated voltage (AC)
    250Vac
  • Mounting mode
    Rear flange
  • Contacts type
    1NO+1NC
  • Compliant with standard(s)
    cURus EN EC CSA VDE EAC CE EN 60664-1 EN 61000-4-5 EN 61810-1
  • Rated current
    30A (250Vac; AC-1) 30A (30Vdc; DC-1) 1.1A (110Vdc; DC-1) 0.7A (220Vdc; DC-1)
  • Control Voltage (DC)
    24Vdc
  • Electrical durability (with load)
    50 000 operations
  • Rated impulse voltage (Uimp)
    4 kV
  • Net Depth (mm)
    36.5 mm
  • Main function
    Relay
  • Connection type
    Solder pin bifurcated
  • Number of Normally Closed (NC) circuits
    1 NC Pole(s)
  • Mechanical durability (at no load)
    30 000 000 operations
  • Degree of pollution
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

65.61.9.024.0300 Related Documents

Finder - 65 Series - Catalogue.pdf

Similar products from: Finder Control Relays

62.23.9.012.0000 on Advantage Electric Supply

62.23.9.012.0000

Finder

Finder 62.23.9.012.0000 is a relay with solder pin connection type, designed for a rated current of 16A at 250Vac (AC-1) and 16A at 30Vdc (DC-1), with lower current ratings of 0.6A at 110Vdc and 0.4A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures for operation and storage from -40 to +70 degrees Celsius. The relay supports a rated voltage of 250Vac, with a control voltage (AC) of 4 kV and is rated for active power (kW) for 3 poles. It features PCB residual current sensitivity, is designed for up to 100,000 operations for Normally Closed (NC) circuits, and can endure up to 30,000,000 operations overall. The relay's contacts are made from AgCdO (Silver Cadmium Oxide), indicating its suitability for a wide range of applications.

0 in stock
94.13SMA on Advantage Electric Supply

94.13SMA

Finder

Plug-in PCB socket with metallic retaining / release clip - Finder - Rated current 10A - Solder pin connections - PCB mounting - Blue color - IP20

0 in stock
44.52.9.024.0000 on Advantage Electric Supply

44.52.9.024.0000

Finder

Miniature electromechanical PCB mount relay - Flux proof (RTII) - Finder (44 series) - Control coil voltage 24Vdc - 2 poles (2P) - 2C/O / DPDT (Double Pole Double Throw) contact - Rated current 6A (250Vac; AC-1) / 6A (30Vdc; DC-1) - Rated switching power

0 in stock
95.85.3 on Advantage Electric Supply

95.85.3

Finder

Plug-in socket - Finder - Rated current 10A - Box-clamp connections - DIN rail / Panel mounting - Blue color - IP20

0 in stock

Manufacturer warranty

65.61.9.024.0300 Finder

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare 65.61.9.024.0300 with other Control Relays products

Product series / family n...

Poles

Ambient air temperature f...

Net Width (mm)

Primary brand

Rated power

Number of Normally Open (...

Contacts coating

Net Height (mm)

Rated voltage (AC)

Selected product

65.61.9.024.0300
Backordered
65.61.9.024.0300
Finder

Electromechanical power relay with rear flange mount + 3mm contact gap - Finder (65 series) - Contro...

Product series / family name65 series

Poles2 Pole(s)

Ambient air temperature for operation-40...+75 °C

Net Width (mm)32.2 mm

Primary brandFinder

Rated power1250VA (230Vac; AC-15) 7500V...

Number of Normally Open (NO) circuits1 NO Pole(s)

Contacts coatingAgCdO (Silver Cadmium Oxide)...

Net Height (mm)42.2 mm

Rated voltage (AC)250Vac

44.52.9.024.0000
Backordered
44.52.9.024.0000
Finder

Miniature electromechanical PCB mount relay - Flux proof (RTII) - Finder (44 series) - Control coil ...

Product series / family name44 series

Poles2 Pole(s)

Ambient air temperature for operation-

Net Width (mm)-

Primary brandFinder

Rated power250VA (230Vac; AC-15) 1500VA...

Number of Normally Open (NO) circuits-

Contacts coating-

Net Height (mm)-

Rated voltage (AC)250Vac

62.23.9.012.0000
Backordered
62.23.9.012.0000
Finder

Finder 62.23.9.012.0000 is a relay with solder pin connection type, designed for a rated current of ...

Product series / family name62 series

Poles3 Pole(s)

Ambient air temperature for operation-

Net Width (mm)-

Primary brandFinder

Rated power750VA (230Vac; AC-15) 4000VA...

Number of Normally Open (NO) circuits-

Contacts coating-

Net Height (mm)-

Rated voltage (AC)250Vac

About the manufacturer

Finder

Advantage Electric Supply is an authorized Finder distributor, proud to partner with a renowned manufacturer that specializes in providing innovative and high-quality industrial automation and electromechanical products. Finder has carved its niche in the industry by offering an extensive range of reliable components designed to meet diverse automation and electrical control needs. With over 65 ye...

Recently viewed products

Relevant products

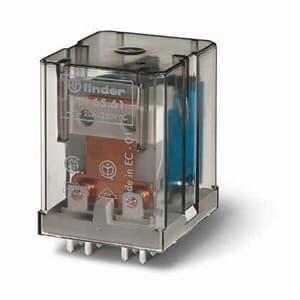

65.61.9.012.0000 on Advantage Electric Supply
