77.01.9.024.9125 Finder Control Relays

77.01.9.024.9125 on Advantage Electric Supply
Finder

Part#:77.01.9.024.9125

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

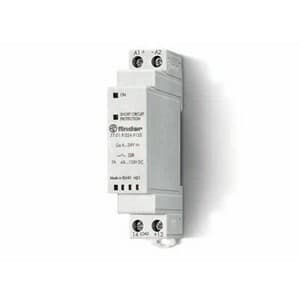

Finder 77.01.9.024.9125 is a Solid State Relay (SSR) designed with a single Normally Open (NO) circuit and utilizes a box-clamp connection type. It supports a rated current of 7A at 125Vdc for DC-1 applications and 2.5A at 125Vdc for DC-13 applications. The SSR features 125Vdc Normally Open (NO) auxiliary contacts and is built with a resistance configuration of 1NO / SPST-NO (Single Pole Single Throw - Normally Open). It is designed to operate within an ambient air temperature range for storage of -20 to +70°C. The rated voltage for AC applications is IP20, and it communicates via a 24Vdc protocol. With a net width of 88.8 mm and a protection function width of 17.5 mm, this SSR is designed for DIN rail mounting, ensuring a compact and efficient installation. The technology used in this component allows for DC switching capability, making it suitable for a variety of automation applications.

Product Details

  • Product series / family name
    77 series
  • Poles
    1 Pole(s)
  • Degree of protection
    IP20
  • Net Height (mm)
    88.8 mm
  • Control Voltage (DC)
    24Vdc
  • Contacts type
    1NO / SPST-NO (Single Pole Single Throw - Normally Open)
  • Technology used in component
    DC switching capability
  • Main function
    Solid State Relay (SSR)
  • Rated Voltage (DC)
    125Vdc (load)
  • Mounting mode
    DIN rail
  • Rated impulse voltage (Uimp)
    4 kV
  • Net Depth (mm)
    56.5 mm
  • Rated current
    7A (125Vdc; DC-1) 2.5A (125Vdc; DC-13)
  • Compliant with standard(s)
    EAC CE cULus EN 60715 EN 60947-4-3 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 62314
  • Net Width (mm)
    17.5 mm
  • Primary brand
    Finder
  • Connection type
    Box-clamp
  • Number of Normally Open (NO) circuits
    1 NO Pole(s)
  • Ambient air temperature for operation
    -20...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

77.01.9.024.9125 Related Documents

Finder - 77 Series - Catalogue.pdf

Similar products from: Finder Control Relays

56.32.8.024.0000 on Advantage Electric Supply

56.32.8.024.0000

Finder

Finder 56.32.8.024.0000 is a relay with a connection type of Fast-on 187, designed to handle rated currents of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower currents of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts in DC-1 design. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is rated for ambient air temperatures between -40 and +70 degrees Celsius for operation, and has a control voltage (AC) of 24Vac (50Hz/60Hz). The relay features a protection function of 250Vac and a control voltage (AC) of 4 kV. It is designed for a rated active power of 2 poles, with a plug-in design for residual current sensitivity. The relay is capable of 100,000 operations for Normally Closed (NC) circuits and has a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel).

3 in stock
55.34.9.024.5080 on Advantage Electric Supply

55.34.9.024.5080

Finder

Finder 55.34.9.024.5080 is a relay with a solder pin connection type, designed for a rated current of 7A at 250Vac (AC-1) and 7A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), and is rated for ambient air temperatures between -40 and +85 degrees Celsius for operation, and has a rated voltage for AC operations. The relay supports a control voltage (AC) of 4 kV, mounts with a net depth of 37.2 mm, and has a rated active power for 4 poles. Its power consumption is specified, with a plug-in mounting mode, and it utilizes a diode for its cross-section. The relay is designed for up to 150,000 operations for Normally Closed (NC) circuits and has a durability of 50,000,000 operations. The contacts are made of AgNi+Au (Gold plated silver-nickel), indicating the materials used for enhanced conductivity and durability.

10 in stock
55.33.9.024.0010 on Advantage Electric Supply

55.33.9.024.0010

Finder

Finder 55.33.9.024.0010 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures from -40 to +85 degrees Celsius for operation and is specified for 500VA at 230Vac and 2500VA at 250Vac in terms of rated active power. The rated voltage for AC operations is 250Vac, with a control voltage tolerance of 4 kV. This relay features a net depth of 37.2 mm, a mounting mode width of 27.7 mm, and a power consumption depth of 20.7 mm. It is designed for plug-in mounting, supports up to 200,000 operations for Normally Closed (NC) circuits, and has a durability of 50,000,000 operations. The contact material is AgNi (Silver Nickel).

20 in stock
55.32.9.024.0070 on Advantage Electric Supply

55.32.9.024.0070

Finder

Finder 55.32.9.024.0070 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is capable of handling ambient air temperatures from -40 to +85 degrees Celsius for operation and storage. The relay supports a rated voltage of 250Vac, with a control voltage of 4 kV, and is designed for plug-in mounting. It has a net depth of 37.2 mm, mounting mode dimensions of 27.7 mm, and a power consumption depth of 20.7 mm. The relay is rated for 200,000 operations for Normally Closed (NC) circuits and has a durability of 50,000,000 operations. The contact material is AgNi (Silver Nickel).

15 in stock
55.32.8.024.0000 on Advantage Electric Supply

55.32.8.024.0000

Finder

Finder 55.32.8.024.0000 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 2C/O / DPDT (Double Pole Double Throw), with an ambient air temperature for operation at 500VA (230Vac) and for storage at 2500VA (250Vac). The rated voltage for AC operation is specified with a wide ambient temperature range of -40 to +85 degrees Celsius. It features a communication protocol of type C, protection functions rated at 250Vac, and a net depth of 37.2 mm. The control voltage (AC) withstands up to 4 kV, with mounting dimensions of 27.7 mm by 20.7 mm, and a color code for 24Vac (50Hz/60Hz) supply. The relay is designed for plug-in mounting, has 2 poles, and is capable of 200,000 operations for Normally Closed (NC) circuits, with a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel).

1 in stock
56.34.9.024.0000 on Advantage Electric Supply

56.34.9.024.0000

Finder

Finder 56.34.9.024.0000 is a relay with a connection type of Fast-on 187, designed for a rated current of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), operates within an ambient air temperature range of -40 to +70 degrees Celsius for both operation and storage, and has a rated voltage of 24Vdc. The relay is equipped with protection functions rated at 250Vac, a control voltage (AC) of 4 kV, and a rated active power of 4 poles. It features a plug-in design for residual current sensitivity, is capable of 100,000 operations for Normally Closed (NC) circuits, and has a durability of 50,000,000 operations. The contacts are made of AgNi (Silver Nickel), ensuring compatibility with various applications.

4 in stock

Manufacturer warranty

77.01.9.024.9125 Finder

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare 77.01.9.024.9125 with other Control Relays products

Product series / family n...

Poles

Degree of protection

Net Height (mm)

Control Voltage (DC)

Contacts type

Technology used in compon...

Main function

Rated Voltage (DC)

Mounting mode

Selected product

77.01.9.024.9125
Backordered
77.01.9.024.9125
Finder

Finder 77.01.9.024.9125 is a Solid State Relay (SSR) designed with a single Normally Open (NO) circu...

Product series / family name77 series

Poles1 Pole(s)

Degree of protectionIP20

Net Height (mm)88.8 mm

Control Voltage (DC)24Vdc

Contacts type1NO / SPST-NO (Single Pole S...

Technology used in componentDC switching capability

Main functionSolid State Relay (SSR)

Rated Voltage (DC)125Vdc (load)

Mounting modeDIN rail

38.21.0.024.0060
6 in stock
38.21.0.024.0060
Finder

Finder 38.21.0.024.0060 is a relay with a box-clamp connection type, designed for a rated current of...

Product series / family name38 series

Poles1 Pole(s)

Degree of protectionIP20

Net Height (mm)-

Control Voltage (DC)24Vdc

Contacts type1C/O / SPDT (Single Pole Dou...

Technology used in component-

Main functionRelay

Rated Voltage (DC)-

Mounting modeDIN rail Plug-in

38.51.0.024.0060
10 in stock
38.51.0.024.0060
Finder

Finder 38.51.0.024.0060 is a relay designed for various applications, featuring a box-clamp connecti...

Product series / family name38 series

Poles1 Pole(s)

Degree of protectionIP20

Net Height (mm)-

Control Voltage (DC)24Vdc

Contacts type1C/O / SPDT (Single Pole Dou...

Technology used in component-

Main functionRelay

Rated Voltage (DC)-

Mounting modeDIN rail Plug-in

About the manufacturer

Finder

Advantage Electric Supply is an authorized Finder distributor, proud to partner with a renowned manufacturer that specializes in providing innovative and high-quality industrial automation and electromechanical products. Finder has carved its niche in the industry by offering an extensive range of reliable components designed to meet diverse automation and electrical control needs. With over 65 ye...

Recently viewed products

Relevant products

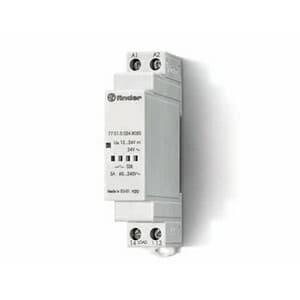

77.01.8.230.8050 on Advantage Electric Supply

77.01.8.230.8050

Verified stock: 0

Finder 77.01.8.230.8050 is a Solid State Relay (SSR) designed for modular DIN rail mounting. It features a single Normally Open (NO) circuit with a box-clamp connection type. This SSR is rated for a current of 5A across various designations including AC-1, AC-15, and AC-7 at a rated voltage of 230Vac. It operates within a temperature range of -20 to +70 degrees Celsius and offers a degree of protection classified as IP20. The rated impulse voltage stands at 230Vac, with a pole length of 88.8 mm, and it includes protection functions rated at 5 kV. The rated insulation voltage is specified at 17.5 mm, with a net depth of 60.8 mm for the component. It utilizes 230Vac (50Hz/60Hz) technology and features zero-cross switching capability for AC switching. The product is designed for use on a DIN rail, indicated by its UPC code, and is characterized by its single pole single throw - normally open (SPST-NO) configuration.

Finder

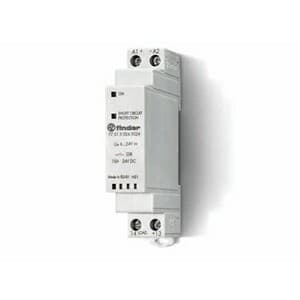

77.01.9.024.9024 on Advantage Electric Supply
