77.25.8.230.8650 Finder Control Relays

77.25.8.230.8650 on Advantage Electric Supply
Finder

Part#:77.25.8.230.8650

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Modular DIN rail mount Solid State / Static Relay (SSR) - Finder (77 series) - Input control voltage 230Vac (50Hz/60Hz) - 1 pole (1P) - 1NO / SPST-NO (Single Pole Single Throw - Normally Open) contacts - Rated current 25A (600Vac; AC-1) - with Input / out

Product Details

  • Main function
    Solid State Relay (SSR)
  • Poles
    1 Pole(s)
  • Contacts type
    1NO / SPST-NO (Single Pole Single Throw - Normally Open)
  • Compliant with standard(s)
    cURus EAC CE EN 60947-4-3 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 62314
  • Primary brand
    Finder
  • Rated voltage (AC)
    600Vac
  • Degree of protection
    IP20
  • Net Depth (mm)
    36.4 mm
  • Product series / family name
    77 series
  • Control Voltage (AC)
    230Vac (50Hz/60Hz)
  • Technology used in component
    Zero-cross switching capability (for AC switching)
  • Net Width (mm)
    44.5 mm
  • Functions
    Modular DIN rail mount Solid State / Static Relay (SSR)
  • Connection type
    Screw-clamp
  • Number of Normally Open (NO) circuits
    1 NO Pole(s)
  • Rated impulse voltage (Uimp)
    5.6 kV
  • Rated current
    25A (600Vac; AC-1)
  • Mounting mode
    Heatsink or panel
  • Ambient air temperature for operation
    -30...+80 °C
  • Net Height (mm)
    57.7 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

77.25.8.230.8650 Related Documents

Finder - 77 Series - Catalogue.pdf

Similar products from: Finder Control Relays

56.32.9.024.0000 on Advantage Electric Supply

56.32.9.024.0000

Finder

Finder 56.32.9.024.0000 is a relay with a connection type of Fast-on 187, designed for a rated current of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +70 degrees Celsius for operation and has a rated voltage for AC operations. The relay supports a communication protocol of C, is designed for use with a control voltage (AC) of 24Vdc, and offers protection functions at 250Vac with a control voltage (AC) withstand of 4 kV. It is rated for an active power of 2 poles, features plug-in residual current sensitivity, and is capable of 100,000 operations for Normally Closed (NC) circuits. The relay's contacts are made from AgNi (Silver Nickel), ensuring durability for up to 50,000,000 operations.

1 in stock
55.33.9.024.0010 on Advantage Electric Supply

55.33.9.024.0010

Finder

Finder 55.33.9.024.0010 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures from -40 to +85 degrees Celsius for operation and is specified for 500VA at 230Vac and 2500VA at 250Vac in terms of rated active power. The rated voltage for AC operations is 250Vac, with a control voltage tolerance of 4 kV. This relay features a net depth of 37.2 mm, a mounting mode width of 27.7 mm, and a power consumption depth of 20.7 mm. It is designed for plug-in mounting, supports up to 200,000 operations for Normally Closed (NC) circuits, and has a durability of 50,000,000 operations. The contact material is AgNi (Silver Nickel).

20 in stock
55.34.9.024.5080 on Advantage Electric Supply

55.34.9.024.5080

Finder

Finder 55.34.9.024.5080 is a relay with a solder pin connection type, designed for a rated current of 7A at 250Vac (AC-1) and 7A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), and is rated for ambient air temperatures between -40 and +85 degrees Celsius for operation, and has a rated voltage for AC operations. The relay supports a control voltage (AC) of 4 kV, mounts with a net depth of 37.2 mm, and has a rated active power for 4 poles. Its power consumption is specified, with a plug-in mounting mode, and it utilizes a diode for its cross-section. The relay is designed for up to 150,000 operations for Normally Closed (NC) circuits and has a durability of 50,000,000 operations. The contacts are made of AgNi+Au (Gold plated silver-nickel), indicating the materials used for enhanced conductivity and durability.

10 in stock
55.32.9.024.0070 on Advantage Electric Supply

55.32.9.024.0070

Finder

Finder 55.32.9.024.0070 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is capable of handling ambient air temperatures from -40 to +85 degrees Celsius for operation and storage. The relay supports a rated voltage of 250Vac, with a control voltage of 4 kV, and is designed for plug-in mounting. It has a net depth of 37.2 mm, mounting mode dimensions of 27.7 mm, and a power consumption depth of 20.7 mm. The relay is rated for 200,000 operations for Normally Closed (NC) circuits and has a durability of 50,000,000 operations. The contact material is AgNi (Silver Nickel).

15 in stock
55.32.8.024.0000 on Advantage Electric Supply

55.32.8.024.0000

Finder

Finder 55.32.8.024.0000 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 2C/O / DPDT (Double Pole Double Throw), with an ambient air temperature for operation at 500VA (230Vac) and for storage at 2500VA (250Vac). The rated voltage for AC operation is specified with a wide ambient temperature range of -40 to +85 degrees Celsius. It features a communication protocol of type C, protection functions rated at 250Vac, and a net depth of 37.2 mm. The control voltage (AC) withstands up to 4 kV, with mounting dimensions of 27.7 mm by 20.7 mm, and a color code for 24Vac (50Hz/60Hz) supply. The relay is designed for plug-in mounting, has 2 poles, and is capable of 200,000 operations for Normally Closed (NC) circuits, with a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel).

1 in stock
62.23.9.012.0000 on Advantage Electric Supply

62.23.9.012.0000

Finder

Finder 62.23.9.012.0000 is a relay with solder pin connection type, designed for a rated current of 16A at 250Vac (AC-1) and 16A at 30Vdc (DC-1), with lower current ratings of 0.6A at 110Vdc and 0.4A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures for operation and storage from -40 to +70 degrees Celsius. The relay supports a rated voltage of 250Vac, with a control voltage (AC) of 4 kV and is rated for active power (kW) for 3 poles. It features PCB residual current sensitivity, is designed for up to 100,000 operations for Normally Closed (NC) circuits, and can endure up to 30,000,000 operations overall. The relay's contacts are made from AgCdO (Silver Cadmium Oxide), indicating its suitability for a wide range of applications.

8 in stock

Manufacturer warranty

77.25.8.230.8650 Finder

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare 77.25.8.230.8650 with other Control Relays products

Main function

Poles

Contacts type

Compliant with standard(s...

Primary brand

Rated voltage (AC)

Degree of protection

Net Depth (mm)

Product series / family n...

Control Voltage (AC)

Selected product

77.25.8.230.8650
Backordered
77.25.8.230.8650
Finder

Modular DIN rail mount Solid State / Static Relay (SSR) - Finder (77 series) - Input control voltage...

Main functionSolid State Relay (SSR)

Poles1 Pole(s)

Contacts type1NO / SPST-NO (Single Pole S...

Compliant with standard(s)cURus EAC CE EN 60947-4-3 EN...

Primary brandFinder

Rated voltage (AC)600Vac

Degree of protectionIP20

Net Depth (mm)36.4 mm

Product series / family name77 series

Control Voltage (AC)230Vac (50Hz/60Hz)

38.21.0.024.0060
6 in stock
38.21.0.024.0060
Finder

Finder 38.21.0.024.0060 is a relay with a box-clamp connection type, designed for a rated current of...

Main functionRelay

Poles1 Pole(s)

Contacts type1C/O / SPDT (Single Pole Dou...

Compliant with standard(s)-

Primary brandFinder

Rated voltage (AC)250Vac

Degree of protection-

Net Depth (mm)-

Product series / family name38 series

Control Voltage (AC)24Vac (50Hz/60Hz)

40.52.8.230.0000
2 in stock
40.52.8.230.0000
Finder

Finder 40.52.8.230.0000 is a relay with solder pin connection type, designed for a rated current of ...

Main functionRelay

Poles2 Pole(s)

Contacts type2C/O / DPDT (Double Pole Dou...

Compliant with standard(s)-

Primary brandFinder

Rated voltage (AC)250Vac

Degree of protection-

Net Depth (mm)-

Product series / family name40 series

Control Voltage (AC)230Vac (50Hz/60Hz)

About the manufacturer

Finder

Advantage Electric Supply is an authorized Finder distributor, proud to partner with a renowned manufacturer that specializes in providing innovative and high-quality industrial automation and electromechanical products. Finder has carved its niche in the industry by offering an extensive range of reliable components designed to meet diverse automation and electrical control needs. With over 65 ye...

Recently viewed products

Relevant products

77.25.8.230.8250 on Advantage Electric Supply

77.25.8.230.8250

Verified stock: 0

Finder 77.25.8.230.8250 is a Solid State Relay (SSR) designed for modular DIN rail mount applications. It features a single Normally Open (NO) circuit with a screw-clamp connection type. The rated current for this SSR is 25A at 230Vac (AC-1), and it operates with a single pole single throw - normally open (SPST-NO) configuration. The ambient air temperature range for operation is from -30 to +80°C, and it is designed to work within a control voltage of 230Vac. This SSR has a rated impulse voltage (Uimp) of 5.6 kV and dimensions of 57.7 mm in length, 44.5 mm in net width, and 36.4 mm in poles width. It offers protection functions for one pole and supports zero-cross switching capability for AC switching. The mounting mode is specified for heatsink or panel installation.

Finder

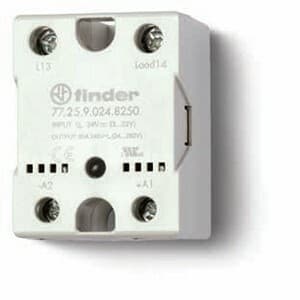

77.25.9.024.8250 on Advantage Electric Supply

77.25.9.024.8250

Verified stock: 0

Finder 77.25.9.024.8250 is a Solid State Relay (SSR) designed with a single Normally Open (NO) circuit and utilizes a screw-clamp connection type. It is rated for a current of 25A at 230Vac in AC-1 conditions and operates with a single pole single throw - normally open (SPST-NO) configuration. This SSR is designed to function within an ambient air temperature range of -30 to +80°C for operation and has a control voltage (DC) rated at IP20, with a rated voltage (AC) of 24Vdc. It supports a communication protocol of 230Vac and is capable of handling a rated impulse voltage (Uimp) of 5.6 kV. The net width of the part is 44.5 mm, and it features a single pole design with a control voltage (AC) dimension of 36.4 mm. It is designed for either heatsink or panel mounting and offers zero-cross switching capability for AC switching.

Finder

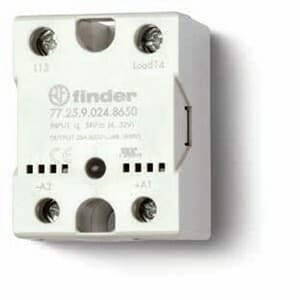

77.25.9.024.8650 on Advantage Electric Supply
