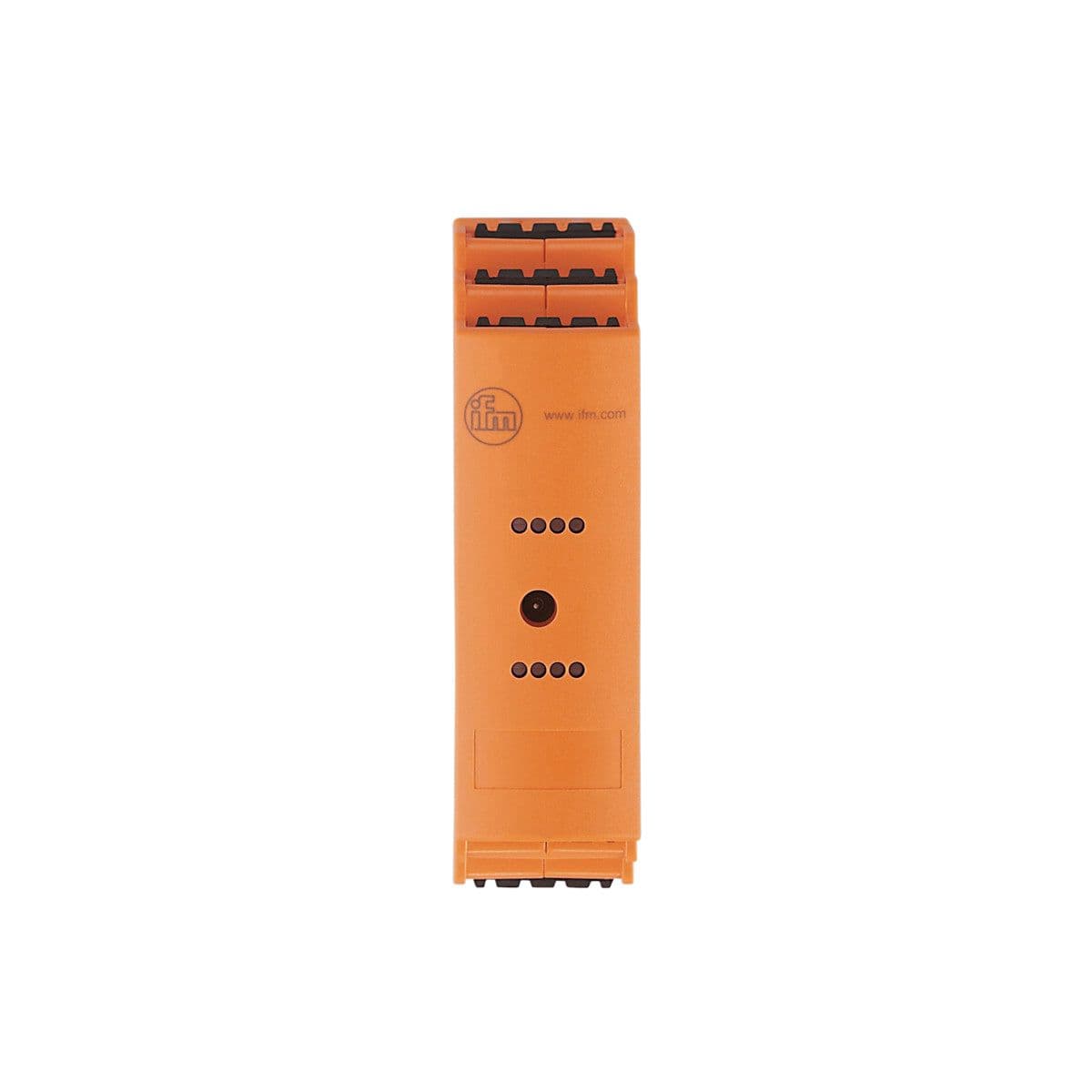

AC3219 ifm Electronic Electronic Components
Part#:AC3219
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
AS-Interface control cabinet module, Application: I/O modules for control cabinet installations
Product Details
- Reverse polarity protection yes
- Analog voltage output [V] 0...10
- Additional voltage supply optional
- Current consumption [mA] 12...57; (External supply)
- Application I/O modules for control cabinet installations
- Overload protection yes
- Operating voltage [V] 26.5...31.6 DC; (cULus - Class 2 source required)
- Max. current load total [A] 0.5; (with external supply; with external supply: 100 mA)
- Actuator supply outputs AS-i / AUX
- Max. current consumption from AS-i [mA] 57; (with external supply: 25 mA)
- Max. load [Ω] 600
- Number of analog outputs 4
- Additional voltage supply [V] 20...30 DC; (AUX)
- Resolution of analog output 16 (1 bit = 1 µV)
- Number of inputs and outputs Number of analog outputs: 4
- Min. load resistance [Ω] 1000
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
